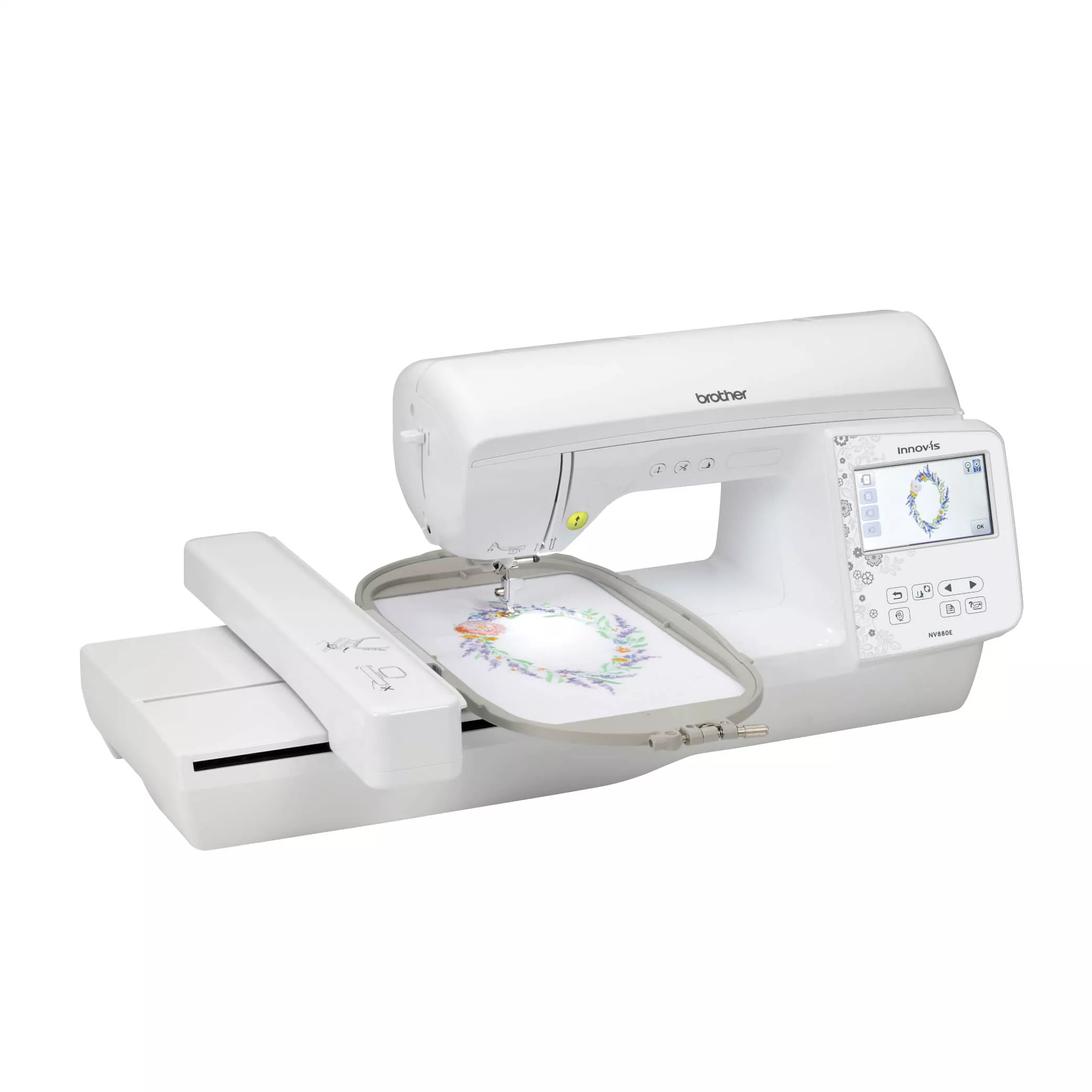

Full-featured Embroidery Only Machine
^Pricing is VAT Inclusive and indicative only
- 260 x 160 mm Embroidery Area
- USB and Wireless LAN Connectivity and Design Database Transfer
- 3 Embroidery Frames included (260 mm x 160 mm; 150 mm x 150 mm; 100 mm x 100 mm)
- 12cm Full Colour LCD Touch Screen Display
- 258 Built-in Embroidery Designs, 140 Frames, 13 Embroidery Fonts
- Automatic Embroidery Frame Detection
Information
Overview

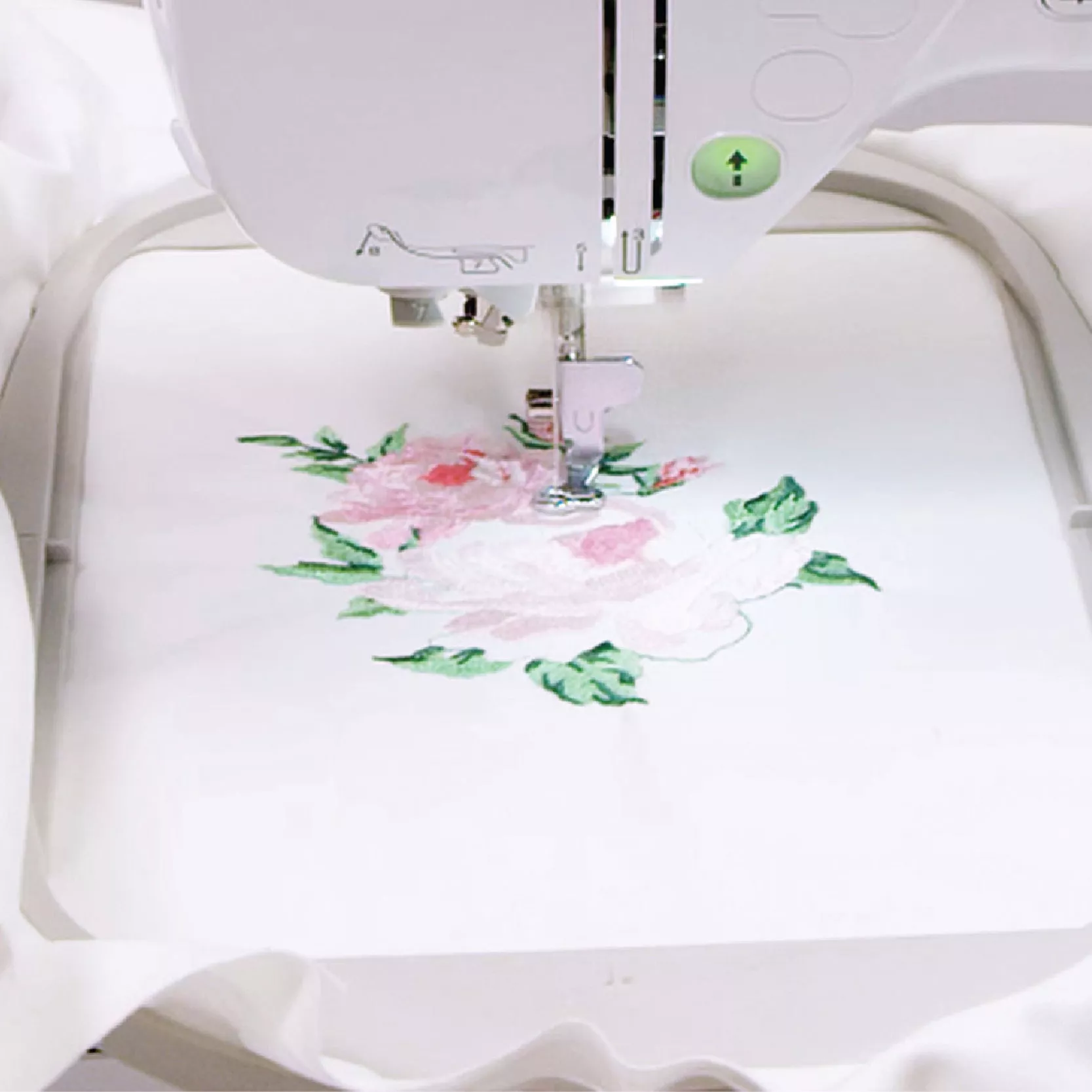

260mm x 160mm Embroidery Area
Includes three embroidery frames 260mm (H) x 160mm (W), 150mm (H) x 150mm (W), 100mm (H) x 100mm (W).

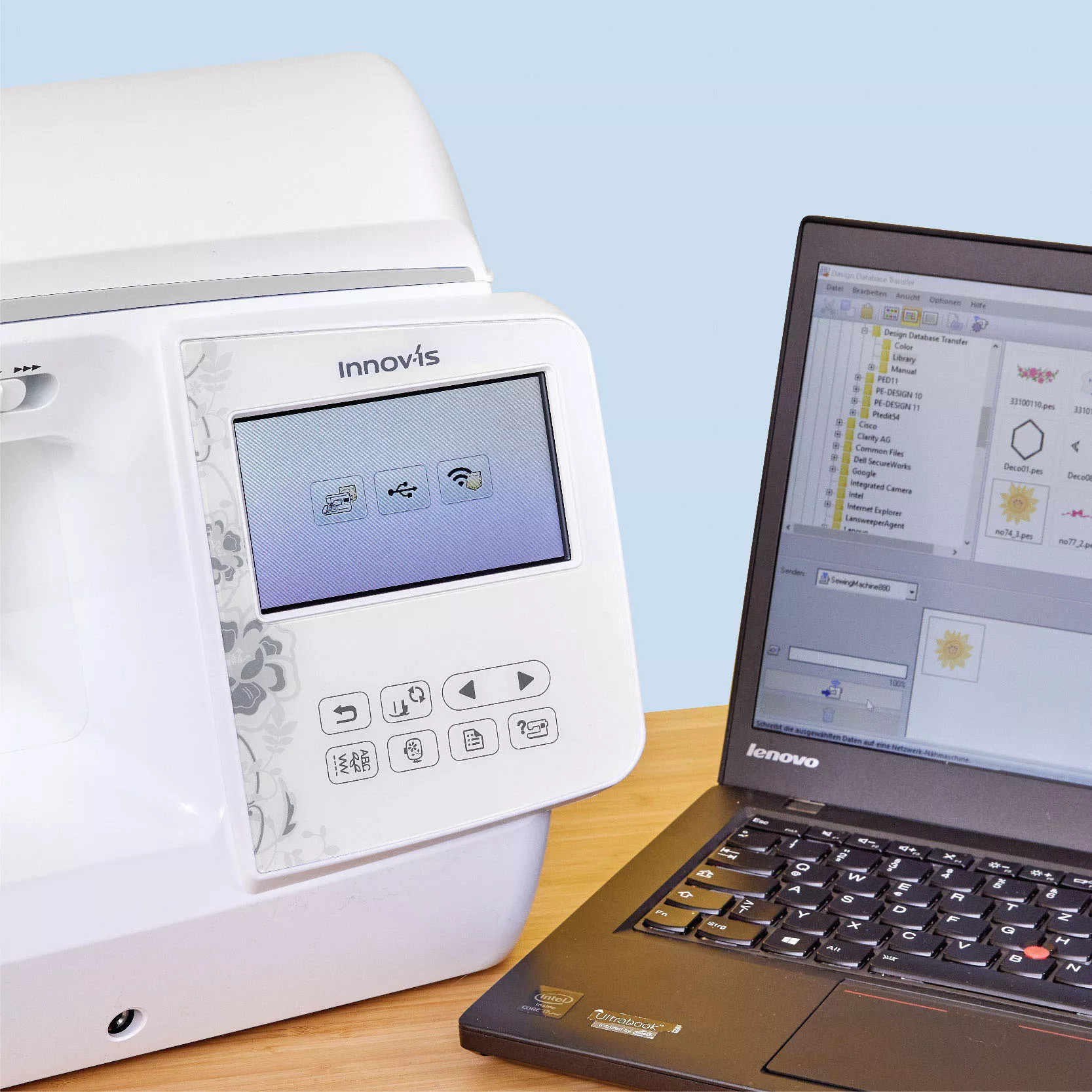

Free App to transfer files
Send designs wirelessly from your PC to your machine when connected to a wireless network, using Design Database Transfer.

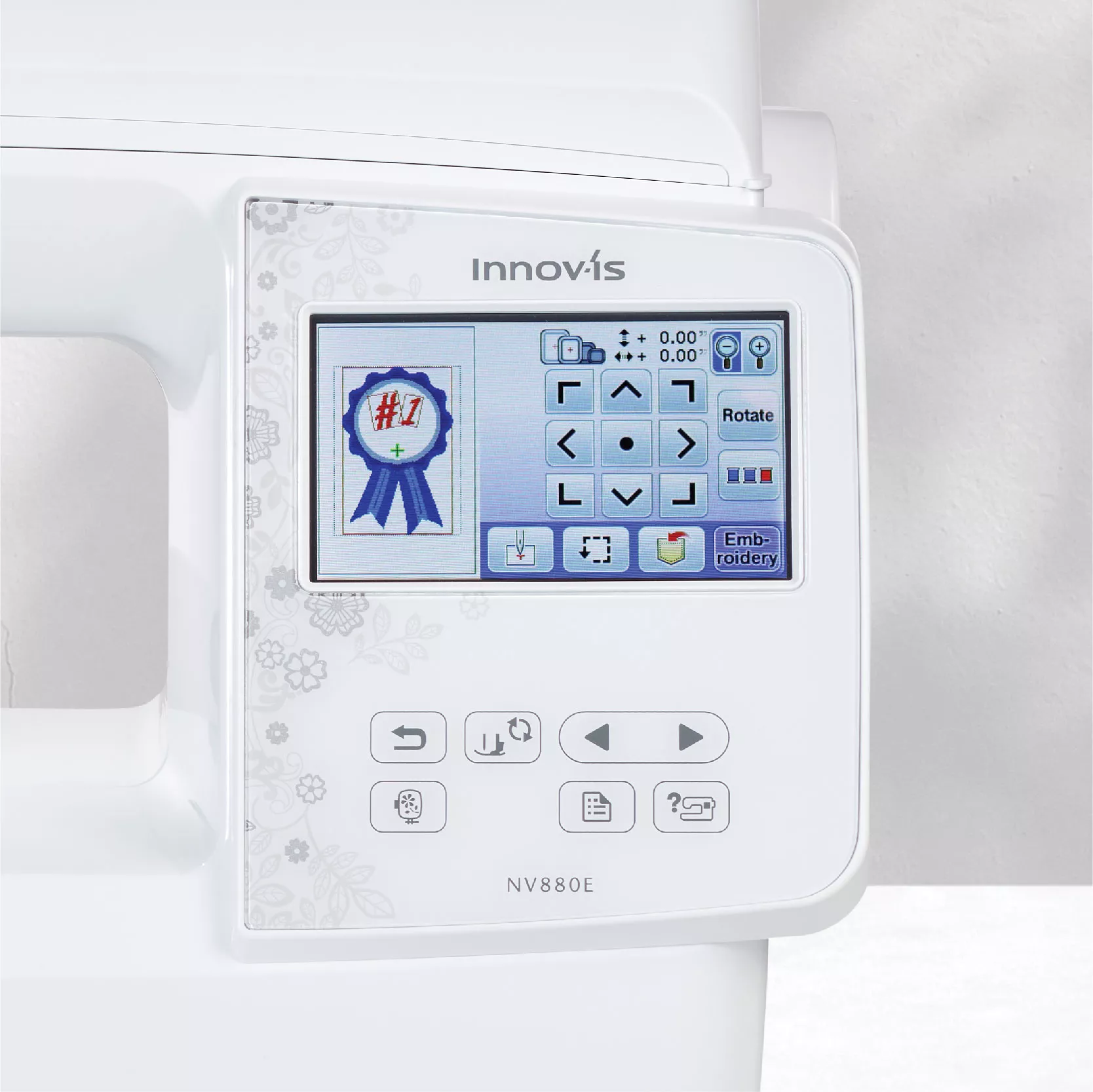

On Screen Editing
With a brilliant and sharp 12.3cm colour LCD touch screen display and an easy user interface, you can do on-screen editing, including letter editing, enhanced zoom, resizing, rotating, repositioning, drag and drop, and combining designs.

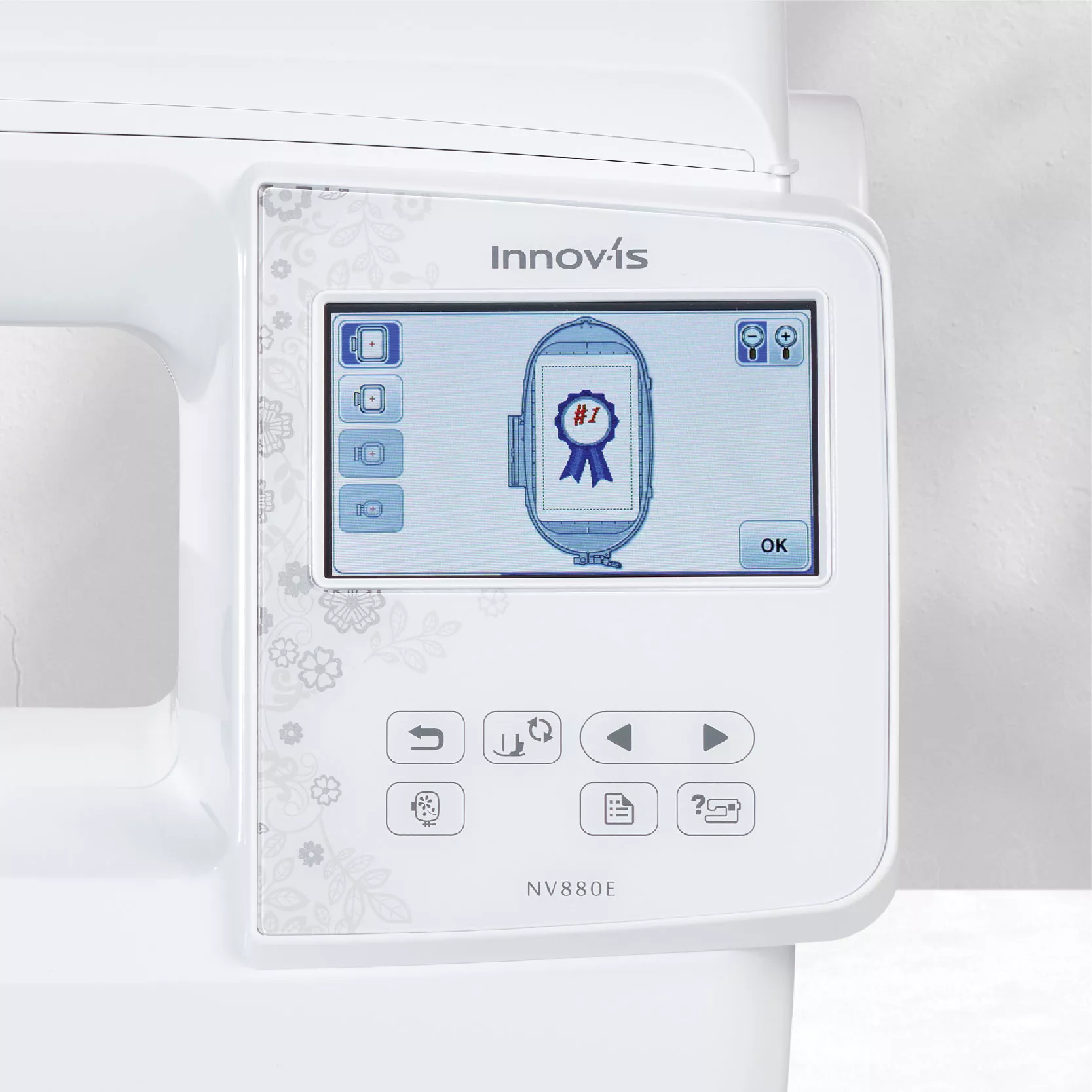

In-Hoop preview
Preview your designs in full colour with enhanced zoom view to see every detail of the design, this feature assists with multiple design placement and hoop optimisation.

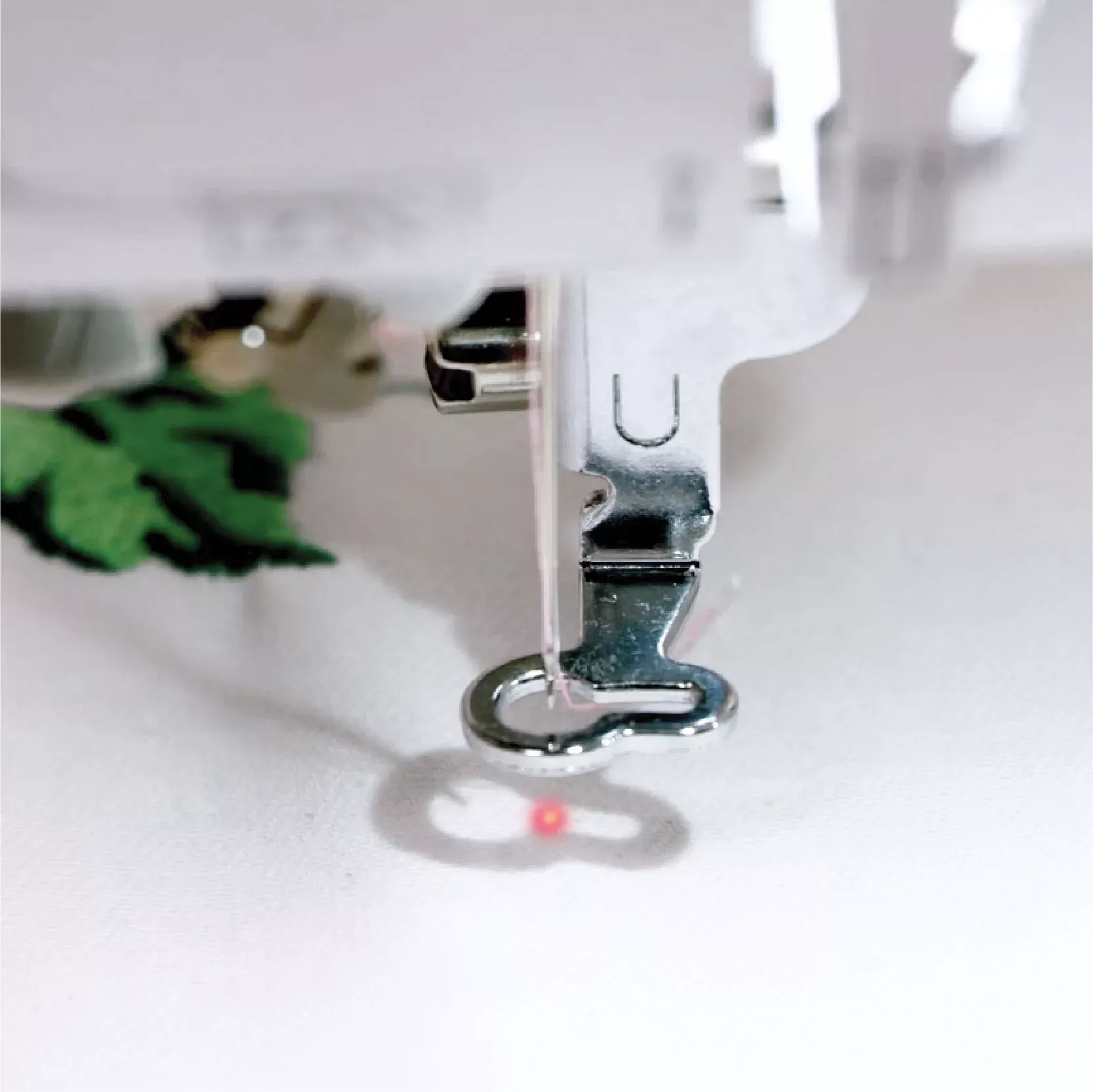

Droplight Positioning Marker
Accurately position your designs. The embroidery foot with LED pointer shows the embroidering needle drop point position.

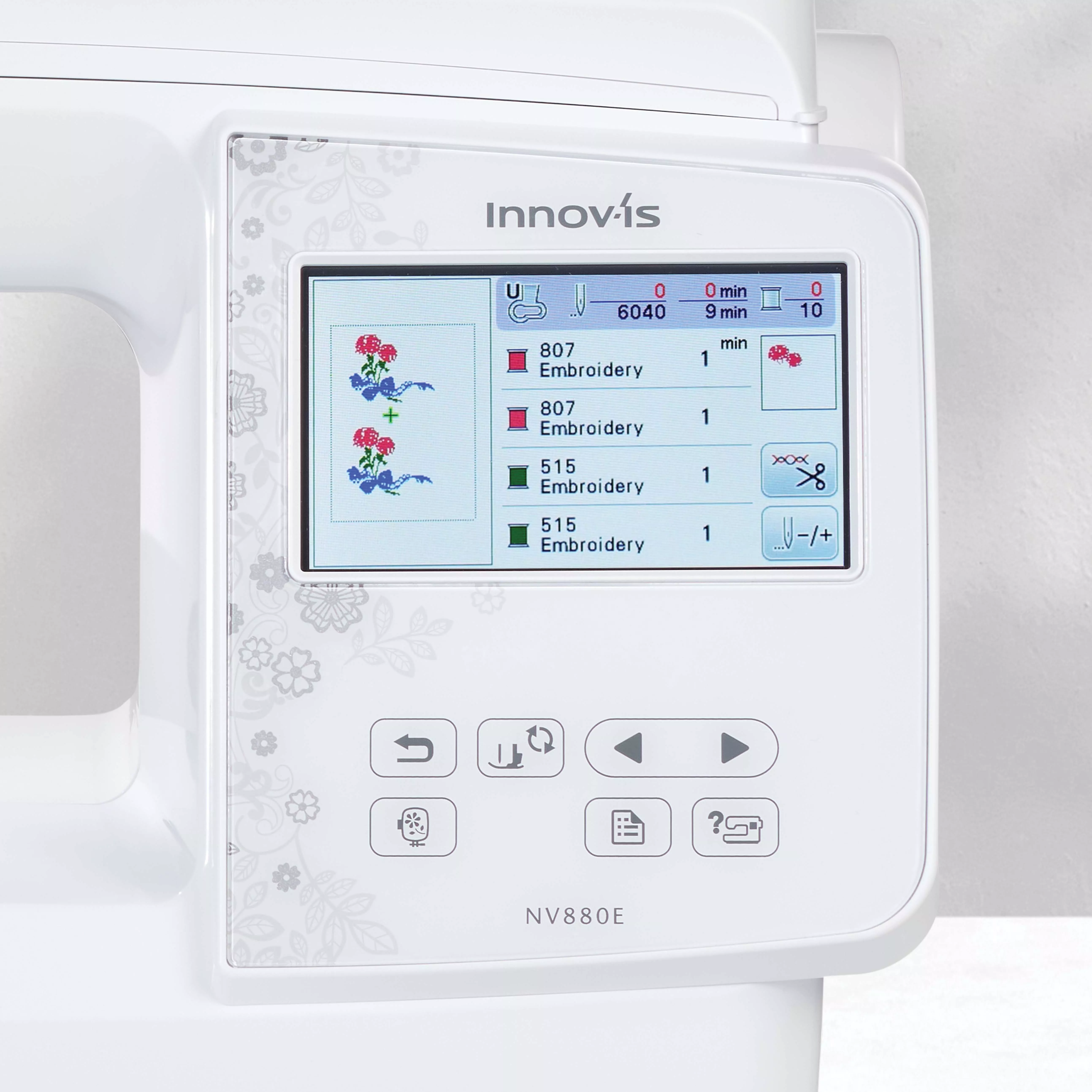

Colour Sorting Feature
Saving time and thread use. The colour sort function allows multiple designs with duplication of thread colours to be sorted and stitched sequentially.
Specifications
Basic Specs
Bobbin Type
Horizontal
Needle Threader
Advanced
Thread Cutter
Auto (Button)
Wi-Fi
Yes
Sewing Light
LED
Start Stop Button
Yes
Thread Tension Control
Auto
Quick-set Bobbin
Yes
F.A.S.T Bobbin Winding System
Yes
Touch Panel LCD
Yes
LCD Display Screen
Yes
Case
Soft cover
Wide Table
No
Warranty
1 Year Carry-in Warranty
What's in The Box
Embroidery foot with LED pointer “U+” (on the machine), Needle set, Bobbin (4) (one bobbin on the machine), Seam ripper, Scissors, Cleaning brush, Screwdrivers (2) (1x Large, 1x Small), L-shaped screwdriver, Disc-shaped screwdriver, Spool cap (3) (1x Large, 1x Medium (on the machine), 1x Small), Thread spool insert (mini king thread spool), Spool net, Bobbin case (on the machine), Embroidery frame set (extra large): 260mm (H) x 160mm (W), Embroidery frame set (medium): 100mm (H) x 100mm (W), Square embroidery frame: 150mm (H) x 150mm (W), Poly 90 weight bobbin thread, Accessory bag, Dust cover, Operational manual, Quick reference Guide, Embroidery design guide
Sewing Features Spec
Stitch No
―
Sewing Speed
―
Speed control by Lever
-
Stitch pattern selection
―
Maximum Stitch Width
―
Maximum Stitch Length
―
Auto Thread Cutter
Auto (Button)
Buttonhole Sewing
―
Number of Buttonholes
―
Embroidery Features Spec
Embroidery Speed (Max)
850 spm
Embroidery Area Max
260 mm x 160 mm
Built In Embroidery Patterns
258
Build In Embroidery Font
13
On Screen Editing
Yes
USB
Yes
Jump Stitch & Wiper Function
Yes
Embroidery Card Slots
No
Camera Function
No
Needle number for Embroidery
1
Overlocker Spec
Maximum Sewing Speed (stitch per minute)
―
Stitch length(mm)
―
Differential Feed(Stitch Width)
―
