Experience lightning-fast printing, high-yield results, effortless duplex printing, and seamless wireless connectivity with our most advanced mono laser printer series
- Up to 48 ppm Print Speed
- Automatic Document Feeder (Up to 50 sheets)
- User-friendly 8.9cm Color Touchscreen Panel
- Wireless 2.4GHz with Wi-Fi Direct
- 250 sheets paper tray input capacity expandable up to 1,290 sheets
- Replaceable high-yield toner (Up to 18,000 pages)
Information
Overview
USB Direct Print
Insert your USB flash drive into the integrated USB reader on the DCP-L5510DW for fast and direct prints and scans.
Connectivity

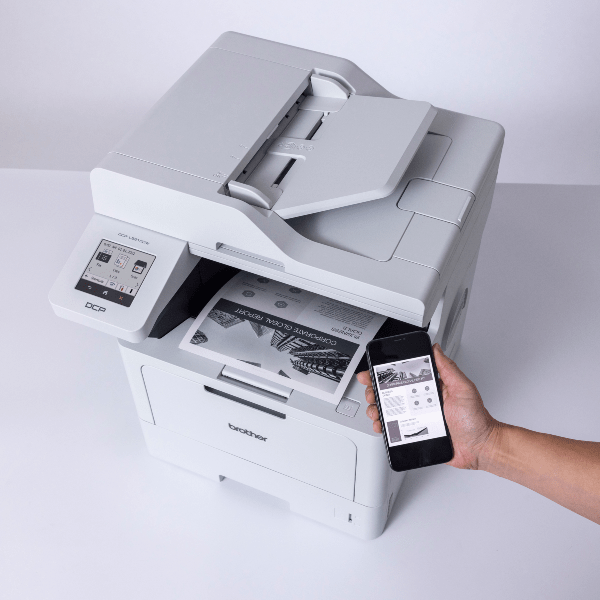

Connect directly from your mobile device for fuss-free printing or scanning of documents, presentations or emails. Plus, print and scan jobs seamlessly with innovative features such as Brother Cloud Apps, WebConnect and Cloud capabilities.
Comprehensive Paper Handling

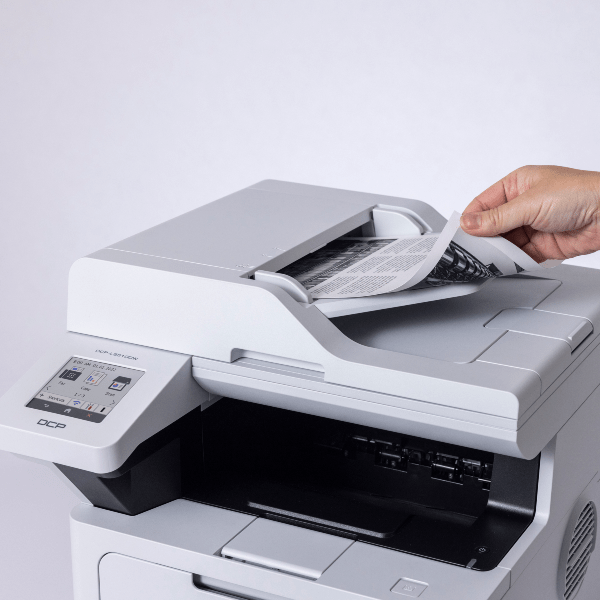

With the 250 sheet default paper tray, the need for frequent paper reloading is reduced. In addition, the Automatic Document Feeder (ADF) holds 50 Sheets your printing convenience.

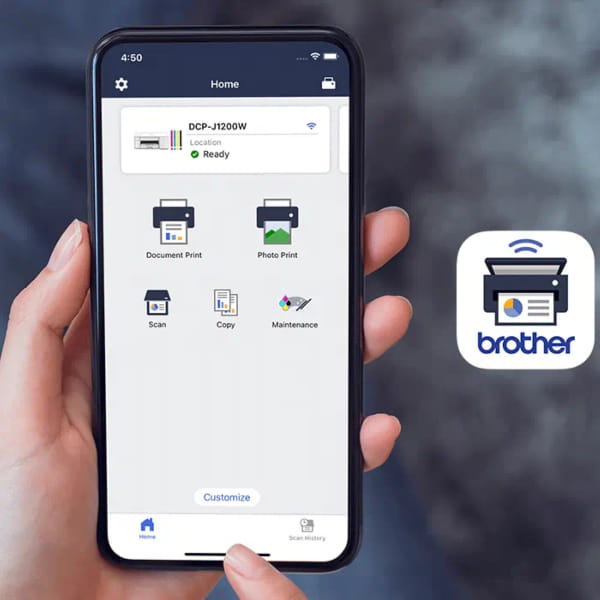

Brother Mobile Apps
Brother mobile apps for Android & iOS provide the flexibilty of printing and scanning directly from your smartphone.
Includes Apple Airprint support so you can simply connect and print without the hassle of installations.

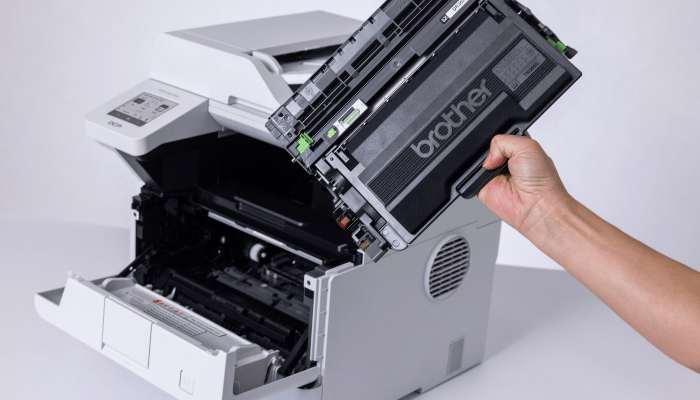

Brother Genuine Consumables for best results
All genuine Brother consumables are designed as part of an entire printing system, and tested to ensure optimum performance and component protection for your home and business.
Specifications
Basic Specs
Functions
Print, Scan, Copy
Printer Type
Black and White Laser Printer
Product Dimensions (Width X Depth X Height)
417 mm × 461 mm × 448 mm
Weight
14.9 kg
Print Speed
Up to 48 (A4) / Up to 50 (Letter) ppm
Paper Type
Plain Paper, Letterhead, Coloured Paper, Thin Paper, Thick Paper, Thicker Paper, Recycled Paper, Bond, Label, Envelope, Env.Thin, Env.Thick
Paper Size
A4, Letter, B5 (JIS), A5, A5 (Long Edge), A6, Executive, Legal, Folio, 16K (195x270 mm), A4 Short (270mm Paper), COM-10, DL, C5, Monarch
Maximum Paper Capacity

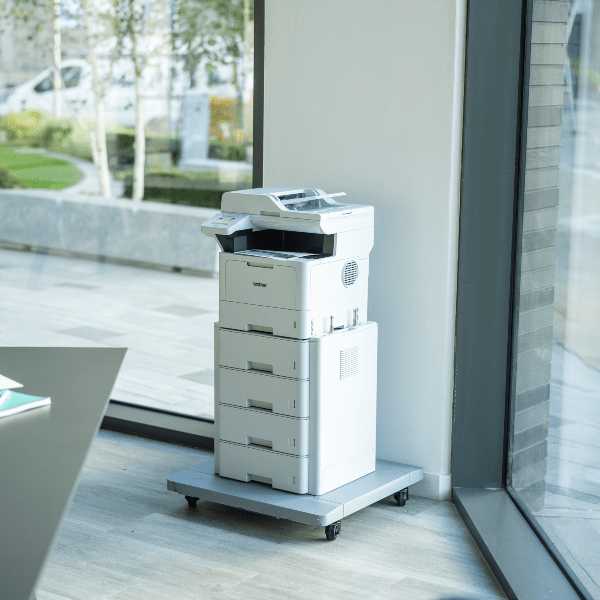

Up to 1290 sheets (with Added Optional Trays)
Warranty

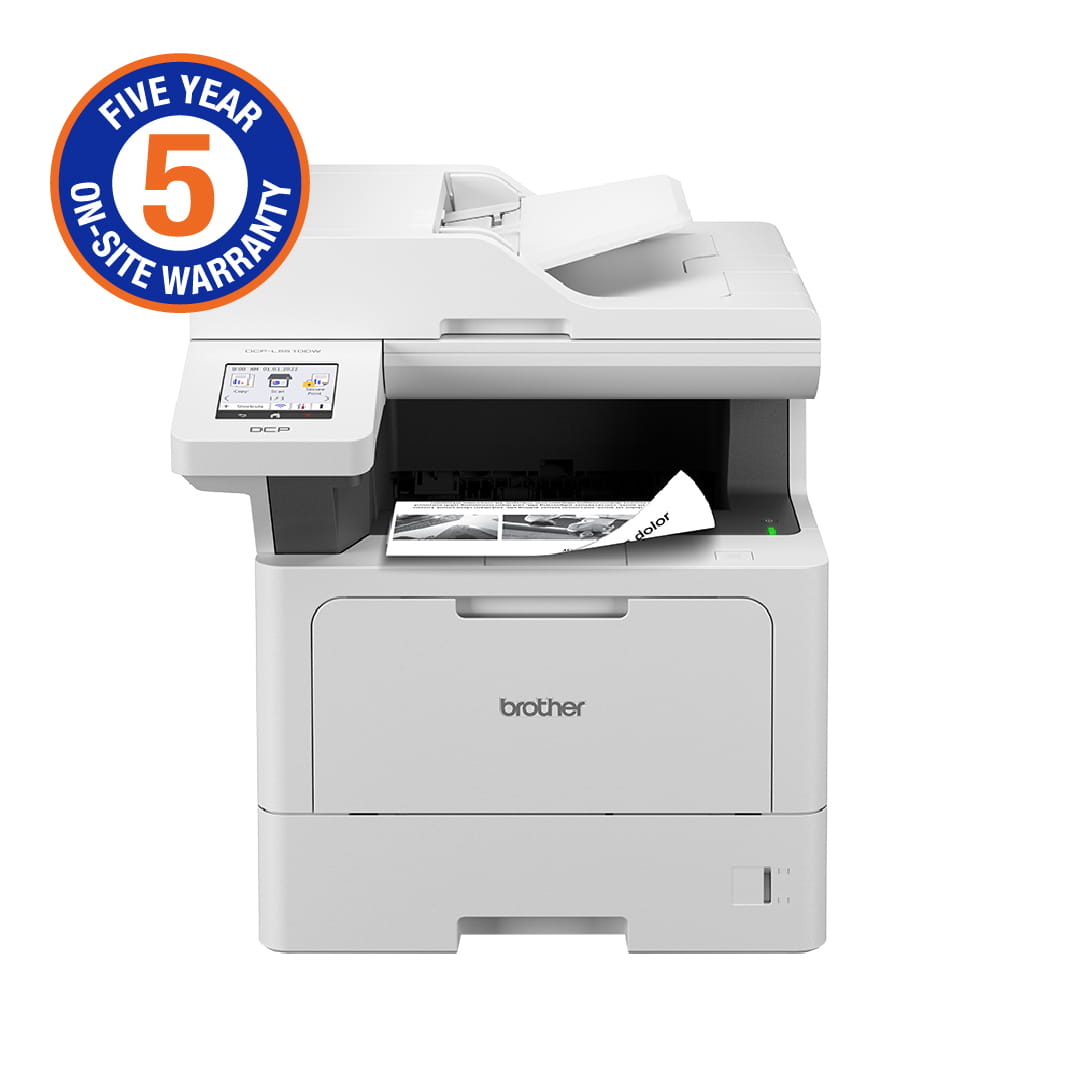

5 Year On-site Warranty
What's in The Box
Resolution
Up to 1200 x 1200 dpi
2-Sided (Duplex) - Printing Paper Type
Plain Paper, Letterhead, Coloured Paper, Thin Paper, Recycled Paper
2-Sided (Duplex) - Paper Size
A4, Letter, Legal, Folio
Paper handling
Tray #1 - Paper Type
Plain Paper, Letterhead, Coloured Paper, Thin Paper, Recycled Paper, Thick Paper
Tray #1 - Maximum Paper Capacity
Up to 250 sheets
Tray #2 - Paper Type
Plain Paper, Letterhead, Coloured Paper, Thin Paper, Recycled Paper, Thick Paper
Tray #2 - Maximum Paper Capacity
(Optional Trays)
LT-6505: Up to 520 sheets
Multi-purpose Tray - Paper Type
Plain Paper, Letterhead, Coloured Paper, Thin Paper, Thick Paper, Thicker Paper, Recycled Paper, Bond, Label, Envelope, Env.Thin, Env.Thick
Multi-purpose Tray - Maximum Paper Capacity
Up to 100 Sheets
Manual Feed Slot - Paper Type
N/A
Manual Feed Slot - Maximum Paper Capacity
N/A
Automatic Document Feeder (ADF) Maximum Paper Capacity
Up to 50 sheets
Paper Output
Up to 150 sheets
Copy
Colour / Monochrome
N/A
Yes
Multiple Copies
Up to 999 pages
Enlarge/ Reduce
25% to 400% (in increments of 1%)
Resolution
Up to 1200 x 600 dpi
Scan
Resolution - Interpolated
Up to 19,200 x 19,200 dpi (interpolated)
Resolution - Scanner Glass
Up to 1200 x 1200 dpi
Resolution - Automatic Document Feeder (ADF)
Up to 600 x 600 dpi
Fax
Compatibility
N/A
Modem Speed
N/A
Memory Transmission
N/A
Out of Paper Reception
N/A
PC Fax - Sending
N/A
PC Fax - Receiving
N/A
Connectivity
Connectivity
Hi-SpeedUSB2.0, Ethernet 10Base-T/100Base-TX/1000Base-T, Wireless LAN IEEE 802.11 b/g/n (Infrastructure Mode), IEEE 802.11 g/n (Wi-Fi Direct)
Network
Wireless Network Security
WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES), WPA3-SAE (AES)
*Wi-Fi Direct supports WPA2-PSK (AES) only.
Wireless Setup Support Utility - WPS
Yes
Display & Memory
Display Type
8.9 cm Colour Touchscreen
Memory Capacity
1 GB
Operation
Power Source
224 - 240 V AC 50/60 Hz
Power Consumption - Ready
Approximately 31 W
Power Consumption - Sleep
Approximately 5.9 W
Power Consumption - Power Off
Approximately 0.05 W
Noise Level
Approximately 54.0 dB (A)
Supported Operating Systems
Supported OS
Windows 11, Windows 10 (32-bit), Windows 10 (64-bit), Windows Server 2022, Windows Server 2019, Windows Server 2016, Windows Server 2012 R2 (64-bit), Windows Server 2012 (64-bit)
macOS 14.x, macOS 13.x, macOS 12.x, macOS 11.x
