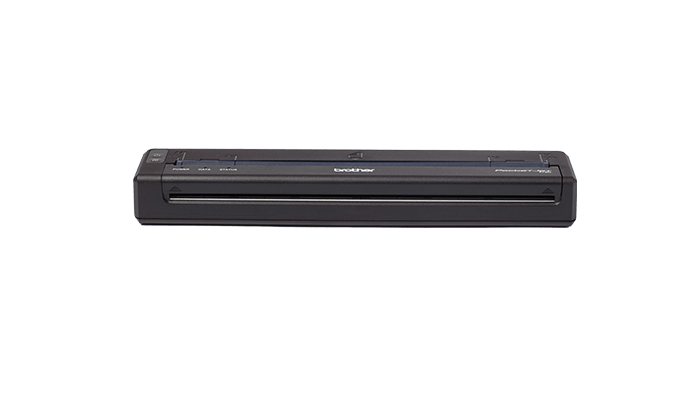

High-Resolution Full-Page Printer with USB-C® Connectivity
- 208.8mm Maximum paper width
- Enable even greater mobility with optional mounts and carrying options
- Communicate and charge power easily with a single USB Type-C® cable
- Windows®, MacOS®, and Linux (via USB) OS compatibility
- High-resolution 300dpi thermal print technology for top quality
- Prints up to 600 pages before recharging
Information
Overview
Key Features
- Direct thermal technology
- Communicate and charge power easily with a single USB Type-C® cable
- Print speed of 13.5ppm
- 203.2mm Maximum paper width
- Print on cut-sheet, continuous roll or fanfold thermal printer paper
- 300dpi Thermal print resolution
- Compact and rugged design
- Prints up to 600 pages before recharging (from 100% battery)
- Windows, Mac OS and Linux (via USB) compatible
- Windows Mobile and Android support
What's in the box

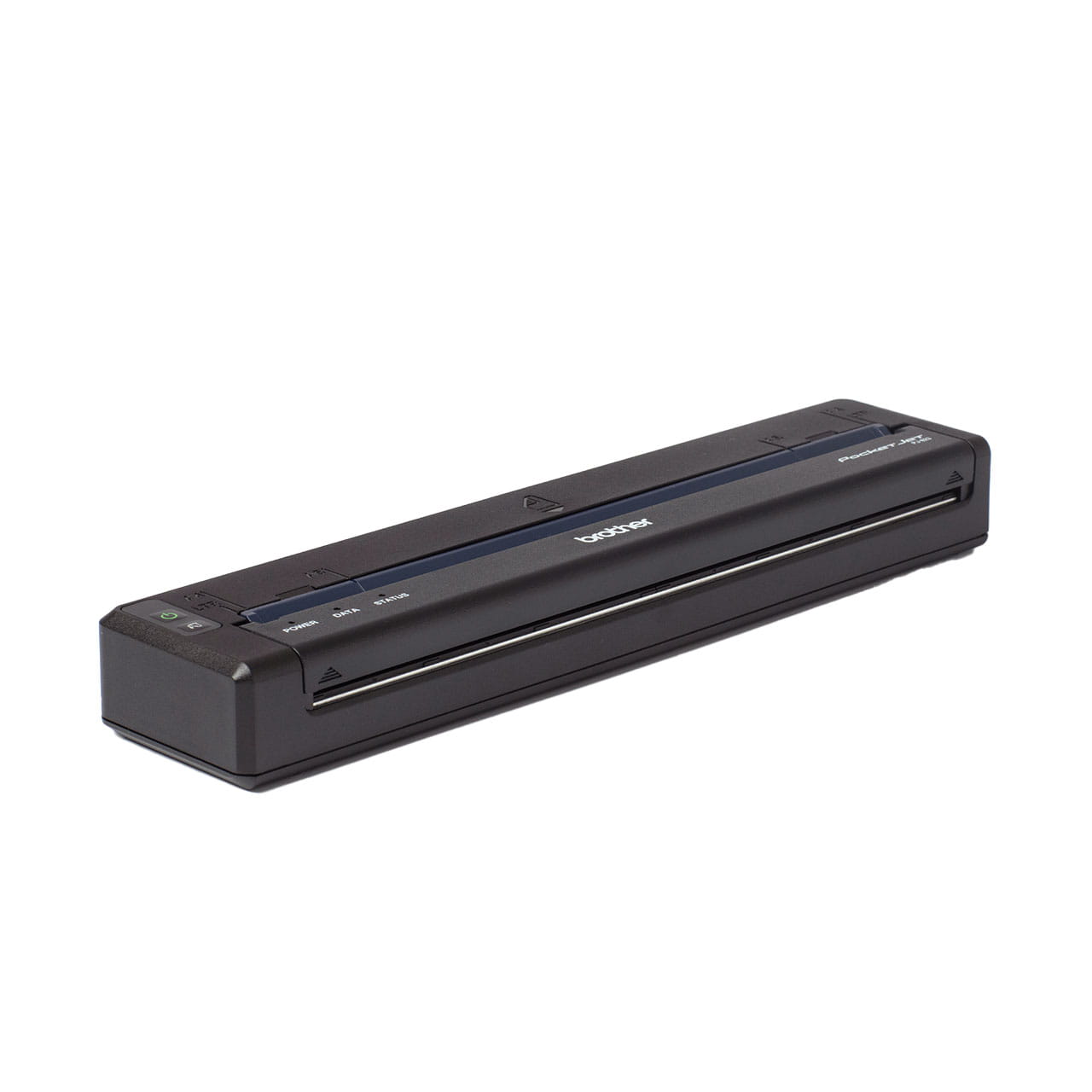

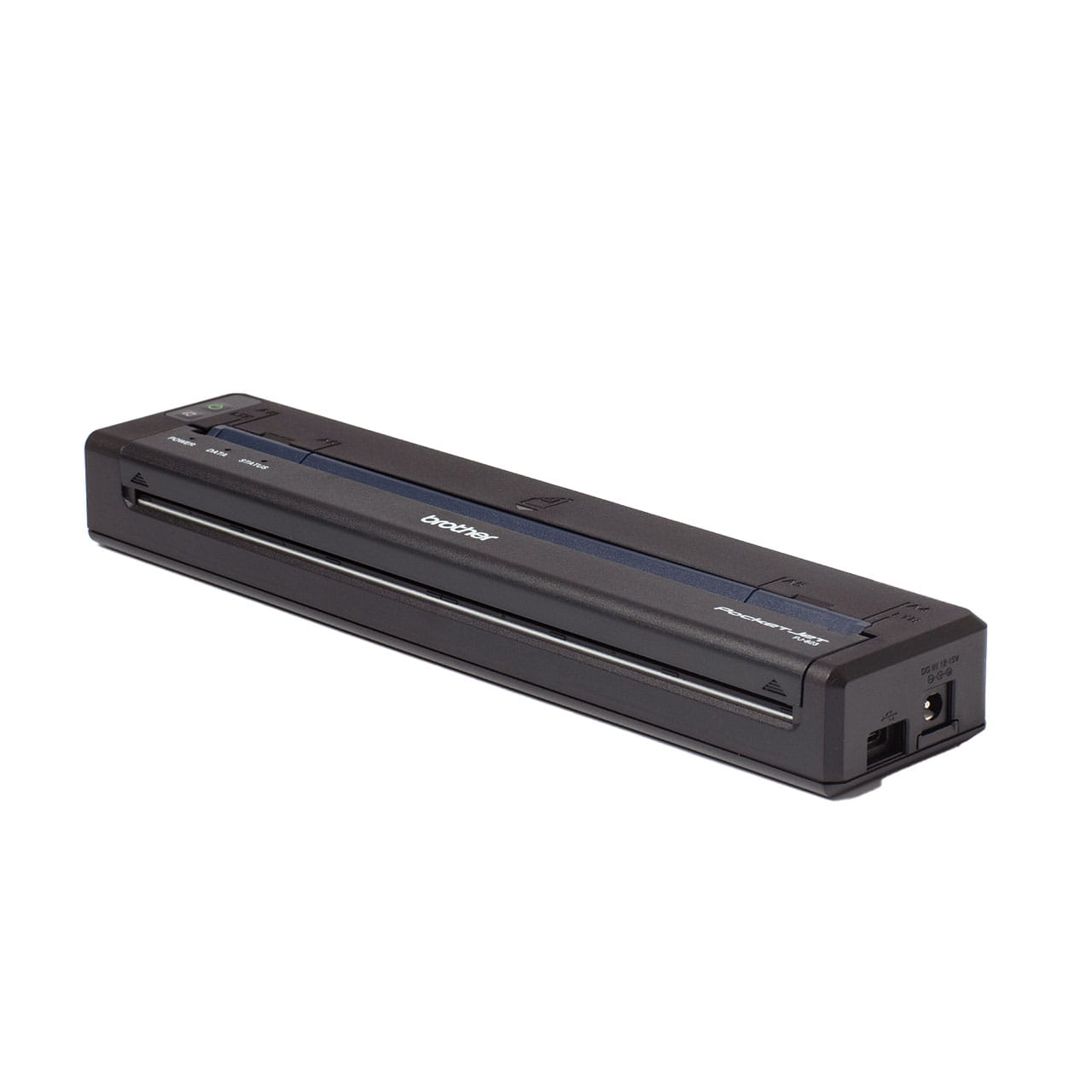

The PocketJet PJ-823 Mobile Printer ships with the following:
- USB C Cable
- Head Cleaning Sheet
- Driver Software for Windows®
- Quick Set-Up Guide

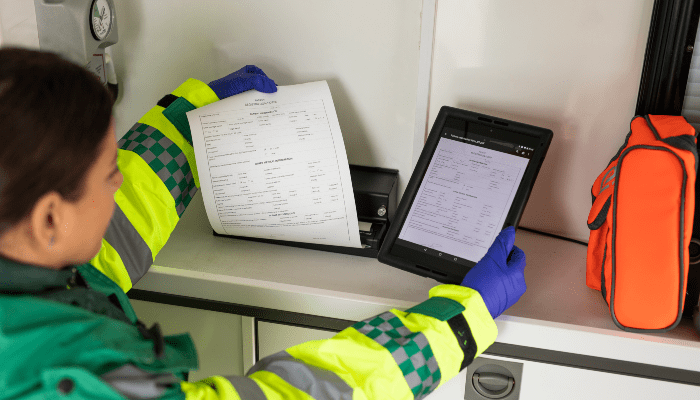

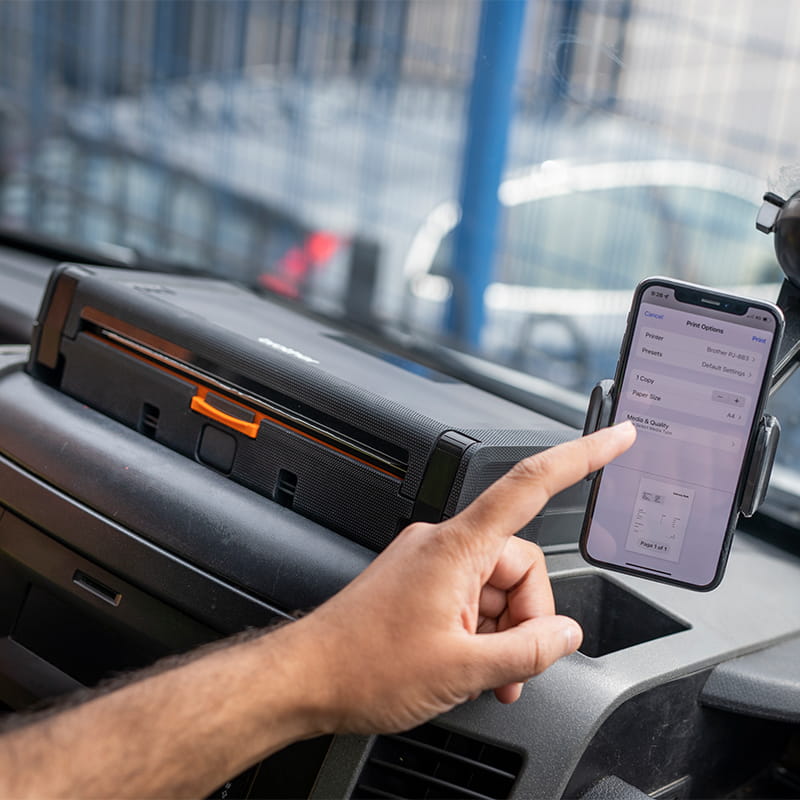

Print anywhere, anytime
At just 26cm wide and weighing approximately 480g (excluding battery), the PJ-863 offers a true A4 mobile solution that fits easily into any work area
Reliable thermal technology
Advanced, direct thermal technology allows busy mobile workforces to focus on the job at hand without needing to purchase ink, toner or ribbons to maintain productivity

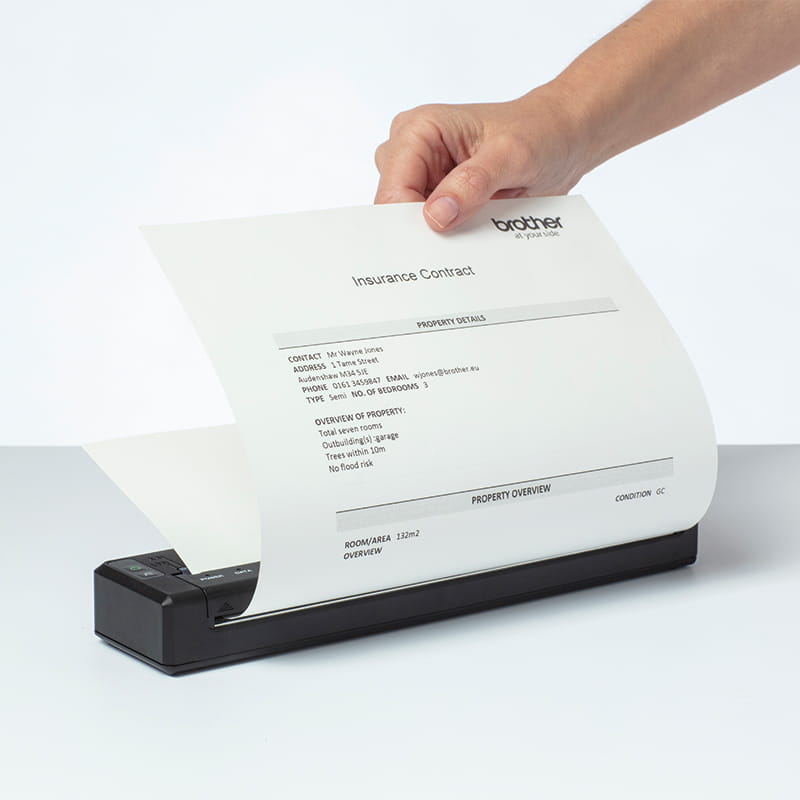

High-quality printing
Experience print speeds of up to 13.5ppm* and high quality, 300dpi outputs that ensure your documents are always available quickly and are of professional quality *When connected by the USB interface and the fully-charged battery.
Seamless integration and setup
With the ability to support printer command languages, including ZPL2 emulation, this mobile printer offers compatibility with a variety of embedded systems

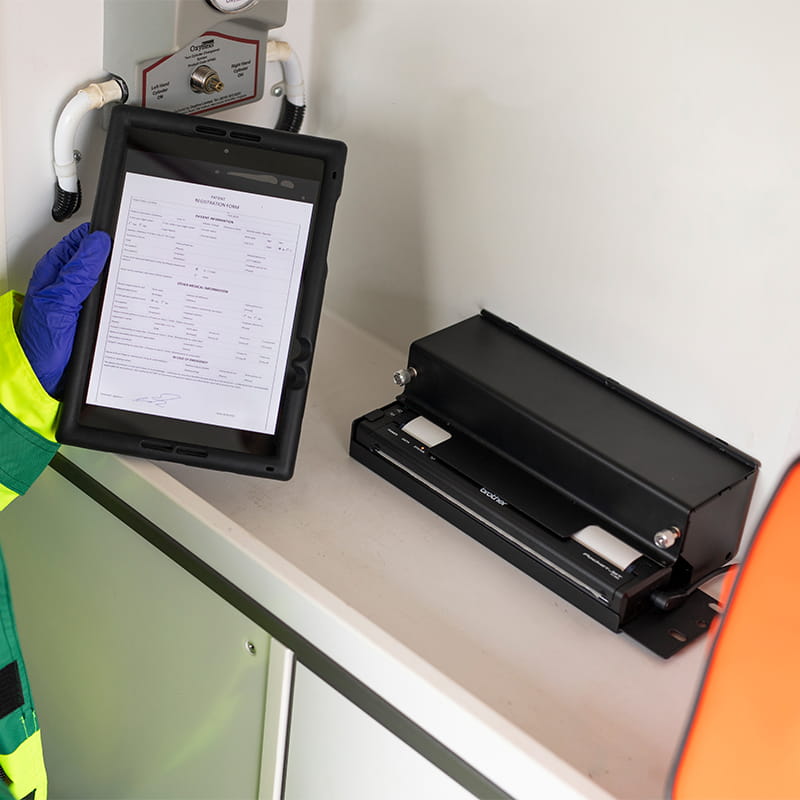

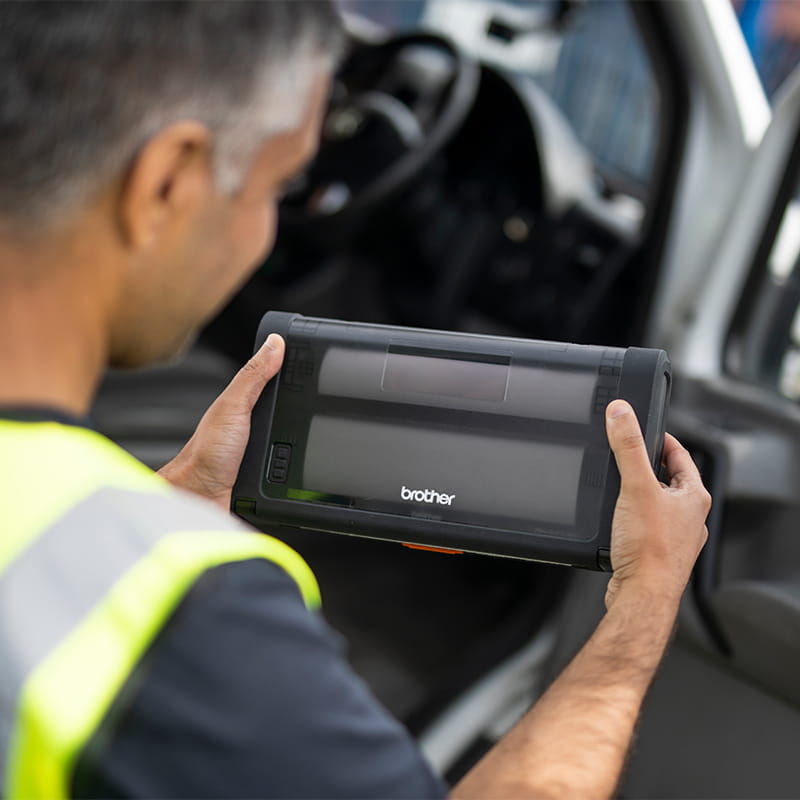

A complete mobile printing solution
Experience a host of optional accessories including USB-C AC adapters, long-lasting Li-ion batteries, paper guides, protective cases and more
At your side support
Wherever you are Brother offers free customer care for the lifetime of your product
Reliable thermal technology
Using advanced, direct thermal technology offers the most reliable mobile printing solution without needing to purchase ink, toner or ribbons to maintain productivity.
Backward compatibility
If you're upgrading your fleet from our PJ-700 series, most accessories are backward compatible.
Continue using accessories that have been tried and tested within your business to minimise downtime and maximise convenience.
Specifications
Basic Specs
Functions
Printer Type
PocketJet Mobile Printer
Product Dimensions (Width X Depth X Height)
255 mm × 55 mm × 30 mm
Weight
430 g
Print Speed
Up to 13.5ppm, 3ips fast print speed*
Paper Type
Paper and Synthetic
Full-page: Cut Sheet, Continuous Roll, Perforated Roll, Fan-Folded
Labels: Cut Sheet, Fan-Folded
Paper Size
A4, A5, Letter, Legal, and Continuous length
Maximum Paper Capacity
Cut paper and Roll paper: 215.9mm, 8.5 inches (Letter, Legal)
Warranty
3 Year Carry-in Warranty
What's in The Box
PocketJet PJ-833 Mobile Printer, USB C Cable, Head Cleaning Sheet, Driver Software for Windows®, Quick Set-Up Guide
Resolution
300 dpi x 300 dpi
Printing Width
Up to 203.2mm
Barcode
Linear: Code39, Code93, ITF(I-2/5), EAN-8(JAN8), EAN-13(JAN13), UPC-A, UPC-E, UPC/EAN EXTENSION, CODABAR(NW-7), CODE128, GS1-128(UCC/EAN-128), POSTNET, GS1 DataBar(RSS), MSI, Intelligent Mail Barcode, Industrial 2-of-5, Standard 2-of-5
2D: QR Code, Micro QR Code, PDF417, MicroPDF417, MaxiCode, Aztec, DataMatrix, GS1 Databar Composite
Connectivity
Connectivity
USB version 2.0 (Full Speed) (Type C)
Display & Memory
Memory Capacity
RAM: 256 MB
FLASH: 64 MB
Operation
Power Source
PA-BT-002 Rechargeable Li-ion Battery, PA-AD-600A AC Power adapter, PA-CD-600CG Car adapter (Cigarette socket type), PA-CD-600WR Car adapter (Permanent wired type) (Purchase separately).
Temperature Operating
Rechargeable Li-ion battery, Car Adapter: -10°C to 50°C,
AC Power adapter: -10°C to 40°C
Supported Commands
Supported Commands
Raster graphic, ESC/P Legacy (ESC/P_P), ESC/P Brother (ESC/P_B), P-touch Template, ZPL II emulation
