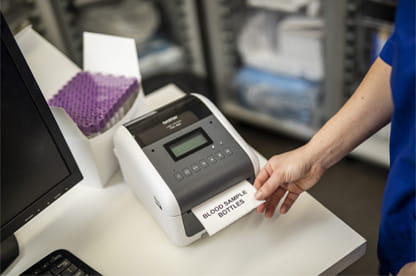

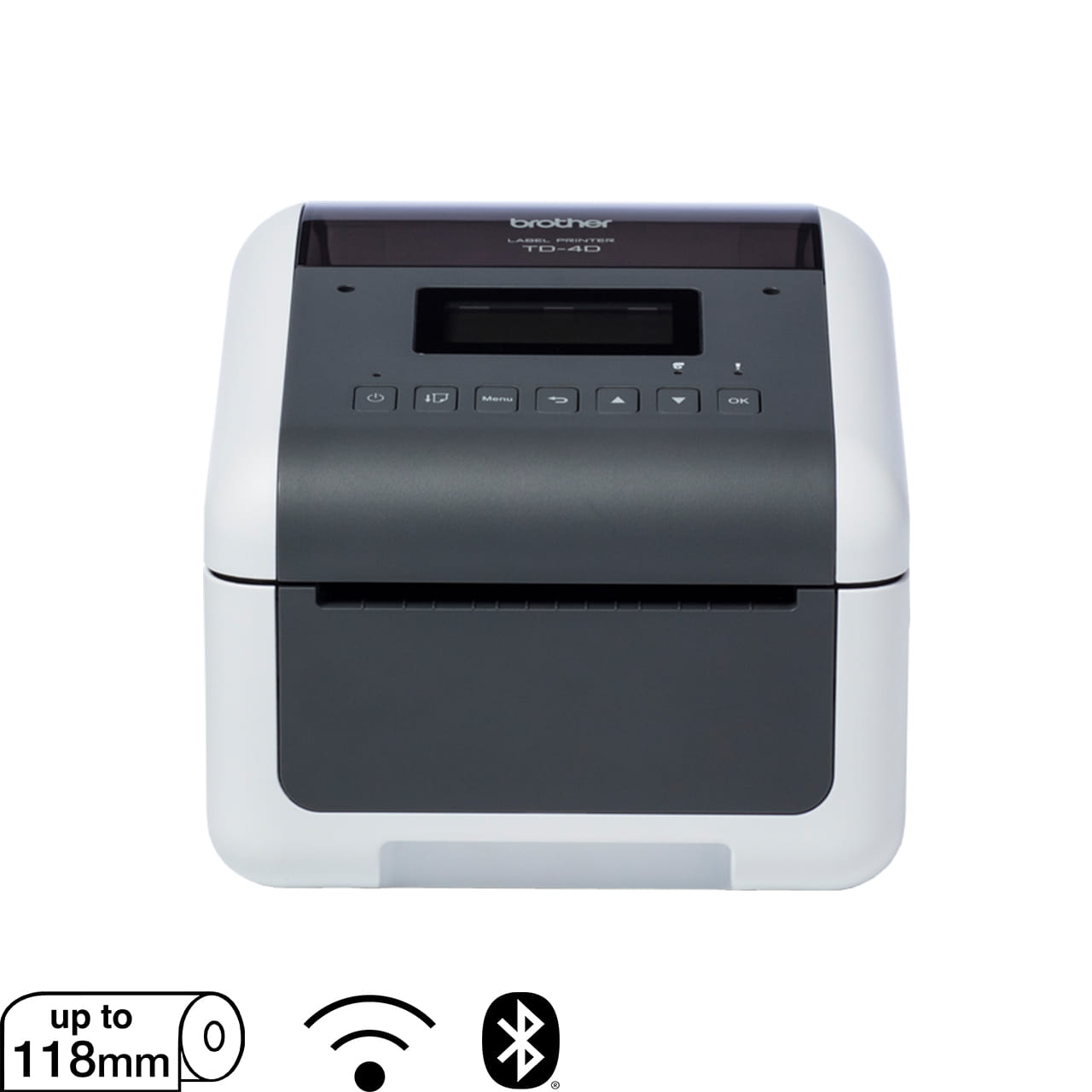

Professional Label Printer for Healthcare, Logistics, Retail and Food Industries
- Prints up to 118 mm on diecut labels and continuous rolls
- USB, USB host, Serial, Wired LAN, AirPrint®, Wireless, MFi® and Bluetooth® wireless connection
- Label creation with Ptouch Editor desktop software
- Prints on wristbands, continuous, die cut, fan fold, perforated, tags
- Optional Cutter (Dealer installed)
- Various image types and barcodes supported
Information
Overview
Seamless Integration
Developed for advanced users, system integrators can leverage the Brother's Software Development Kit (b-PAC SDK) for Windows® operating systems, along with the print command languages such as ZPL II, Raster and CPCL emulation for easy integration into any legacy system for label printing needs.
For more information, please visit:
https://www.brother.co.jp/eng/dev/bpac/index.aspx
Print Performance, Meet Affordable Labelling
In today’s speed-of-light e-commerce environment, moving inventory faster, tracking it better, and minimising costs is what keeps you in the game. You need labelling solutions that are built for real work in SMB supply chain operations.

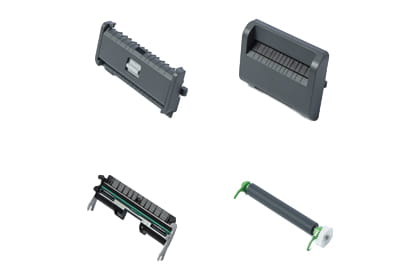

Optional accessories
Offers a wide range of accessories* to support customised solutions for specific requirements.
* Separate purchased required.
Warranty
Delivering peace of mind with a 2 year return to base warranty on hardware and a 6 month return to base warranty on print heads. Rapid exchange is also available as an optional add-on.
Reliable technology
Direct Thermal technology is made up of less moving parts meaning less interruptions for your business.

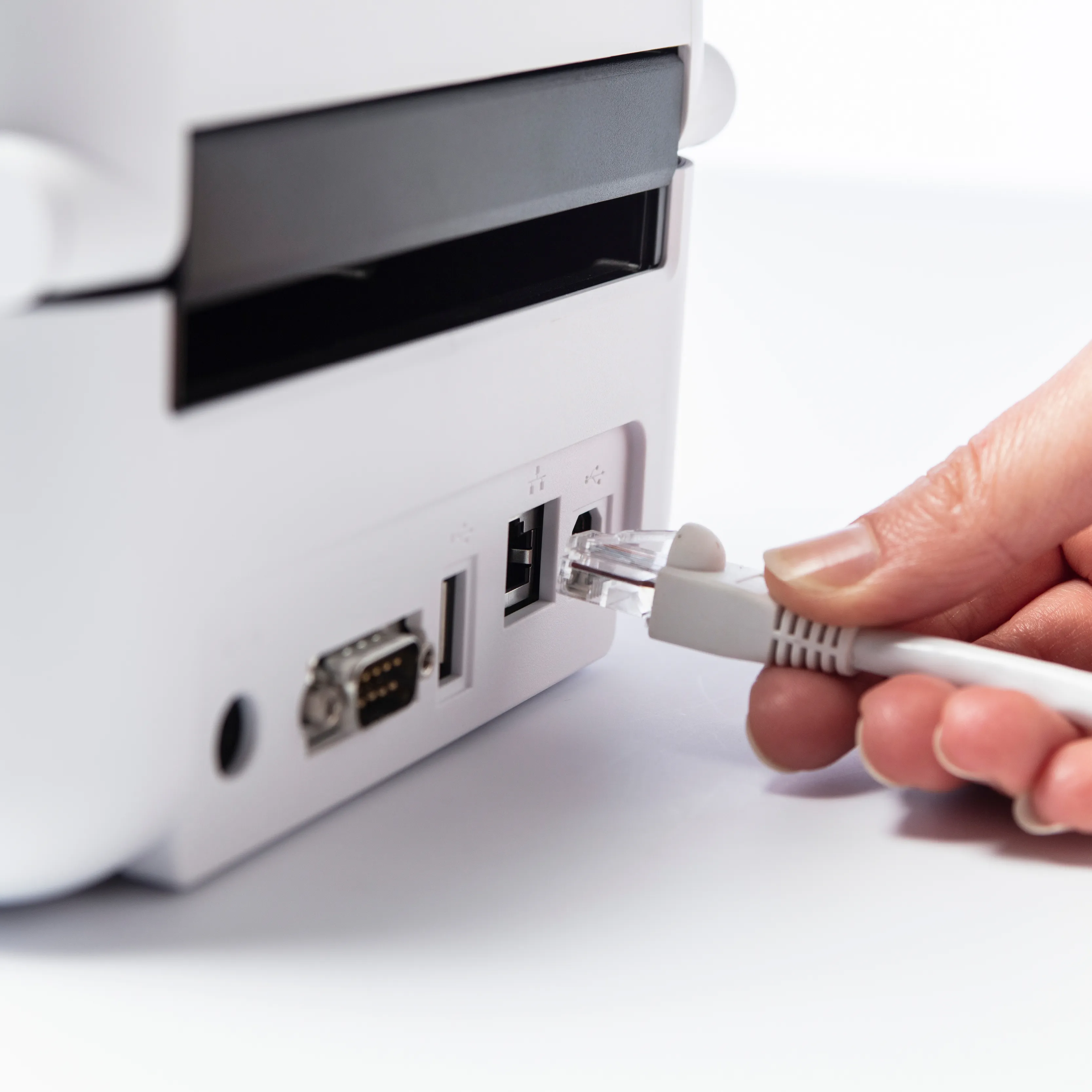

Various connectivity options
Including USB, Serial, Wireless, Bluetooth and Wired LAN available.

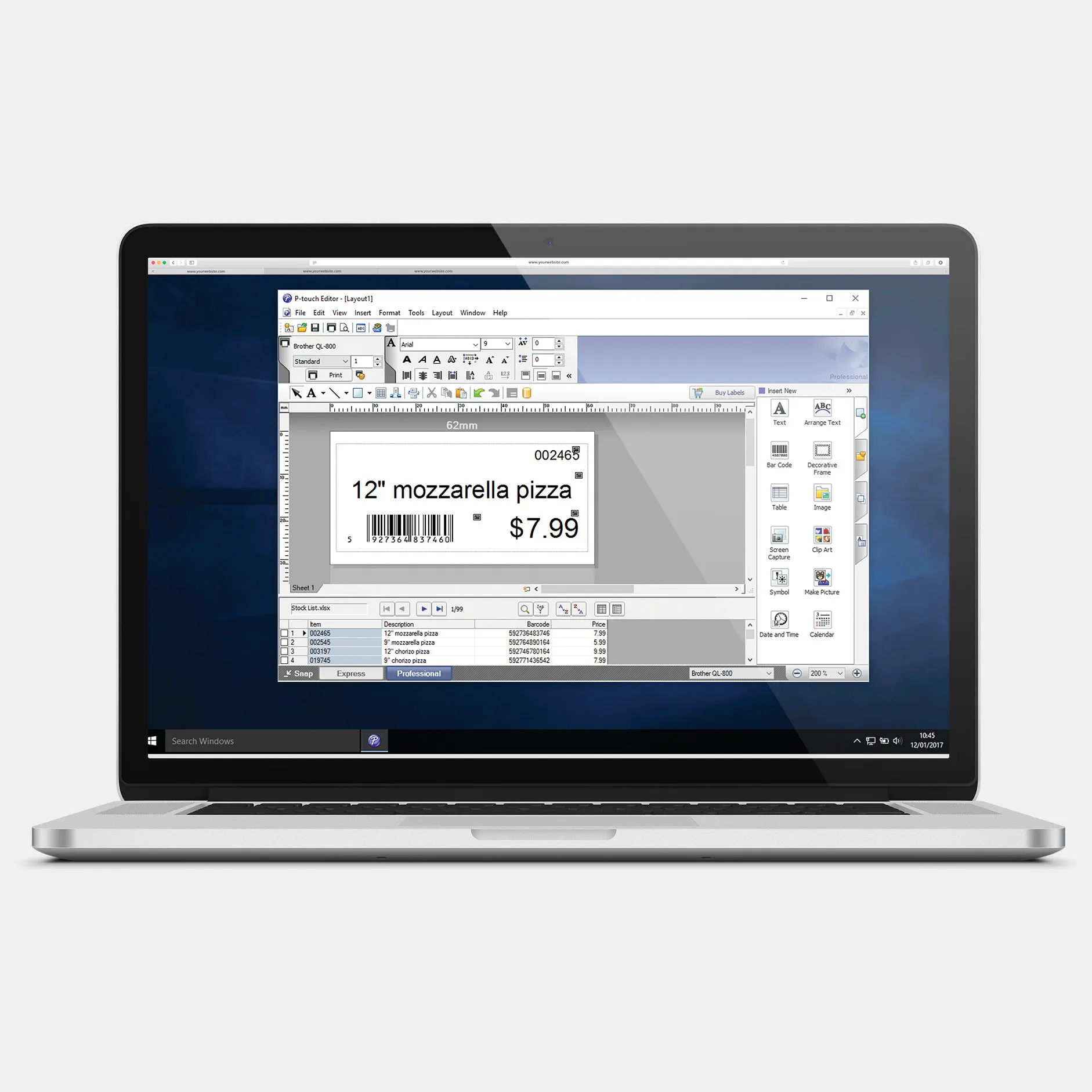

Professional Label Design
From built-in templates and design elements to more advanced label design using P-touch Editor or a free Brother mobile labelling app.
Brother offers a suite of free mobile apps that work seamlessly with selected Brother label printers to support mobile printing and label creation.
Brother genuine tapes and labels
Our labels have been tested against the effects of water, abrasion, temperature, chemicals and sunlight. Brother laminated labels stay legible and stay stuck and have been designed to last.
Brother Genuine tapes and labels have been developed to work reliably with Brother label printers to provide high-quality, consistent output. For the best results, we recommend using only Brother Genuine supplies.
Specifications
Basic Specs
Keyboard
No
Display Type
7 Button 3 LED
Media Type
Wristbands, Continuous, Die cut, Fan fold, Perforated, Tag
Available Tape Widths
19 - 118 mm
Product Dimensions (Width X Depth X Height)
180 mm × 224 mm × 155 mm
Weight
2.08 kg
Print Speed
Max. 152.4 mm/sec
Warranty
2 Year Carry-in Warranty
What's in The Box
TD-4555DNWB Desktop Label Printer, AC Adapter and Cord, USB cable, Users Guide
Resolution
300 dpi
No. Of Printable Lines
Adjustable within 118 mm width
Number of Characters
No
Number of Symbols
No
Barcode
1. CODE 39
2. CODE 128
3. ITF (I-2/5)
4. EAN-8 (JAN 8)
5. EAN-13 (JAN 13)
6. UPC-A
7. UPC-E
8. CODABAR (NW-7)
9. GS1-128 (UCC/EAN 128)
10. GS1 Databar (Standard (Omnidirectional)/Truncated/Stacked/Stacked Omnidirectional/Limited/Expanded)
11. CODE 93
12. POSTNET
13. UPC/EAN EXTENSION
14. MSI
15. Intelligent Mail Barcode
16. QR Code (model 1, model 2, micro QR)
17. Maxicode
18. PDF417 (Standard, Truncate, MicroPDF417)
19. Data Matrix (ECC200 Square, ECC200 Rectangular)
20. Aztec
Numbering
Print via P-touch Editor
Connectivity
Connectivity
USB 2.0 Full Speed Type C, Ethernet 10/100BASE-TX, Bluetooth® Dual-Mode (Classic + LE), IEEE 802.11b/g/n (Wireless LAN - Infrastructure Mode - 2.4GHz), IEEE 802.11a/n (Wireless LAN - Infrastructure Mode - 5.0GHz), IEEE 802.11g/n Wireless LAN - Wireless Direct
Bluetooth® Profile
SPP, OPP, HCRP, GATT
Media
Maximum Tape Width
Up to 118mm
Maximum Roll Width
19 to 118 mm
Printing Width
Max 108.4 mm
Functions

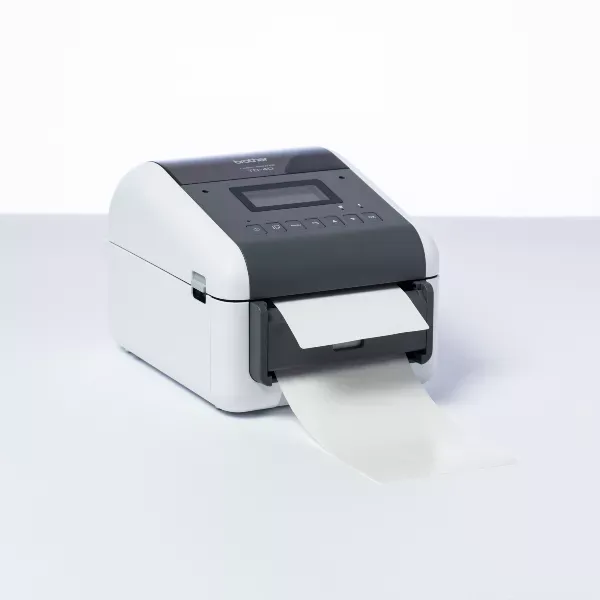

Cutter
No cutter. Optional: PA-CU-001 cutter
Multi Block Printing
Print via P-touch Editor
Copy Printing
Print via P-touch Editor
Mirror Printing
Print via P-touch Editor
Preview
via P-touch Editor
Memory
Memory Buffer Size
256MB
Power
Power Source
Bundled with PA-AD-002 AC Power Adapter
Auto Power-Off
Yes
Specifications-Supported Commands
Supported Commands
P-touch Template, ESC/P, Raster, ZPL II, EPL 2, CPCL, DPL emulation
