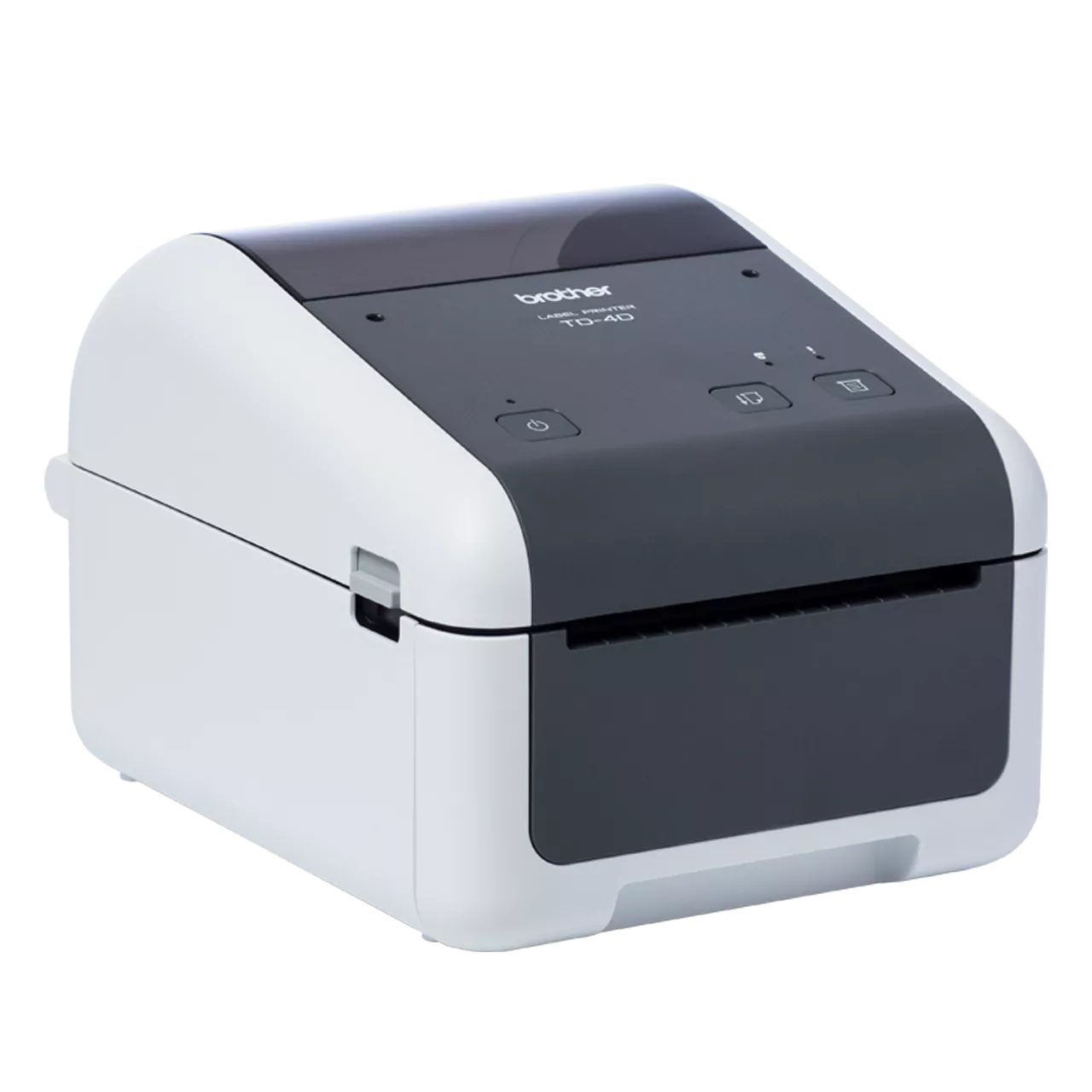

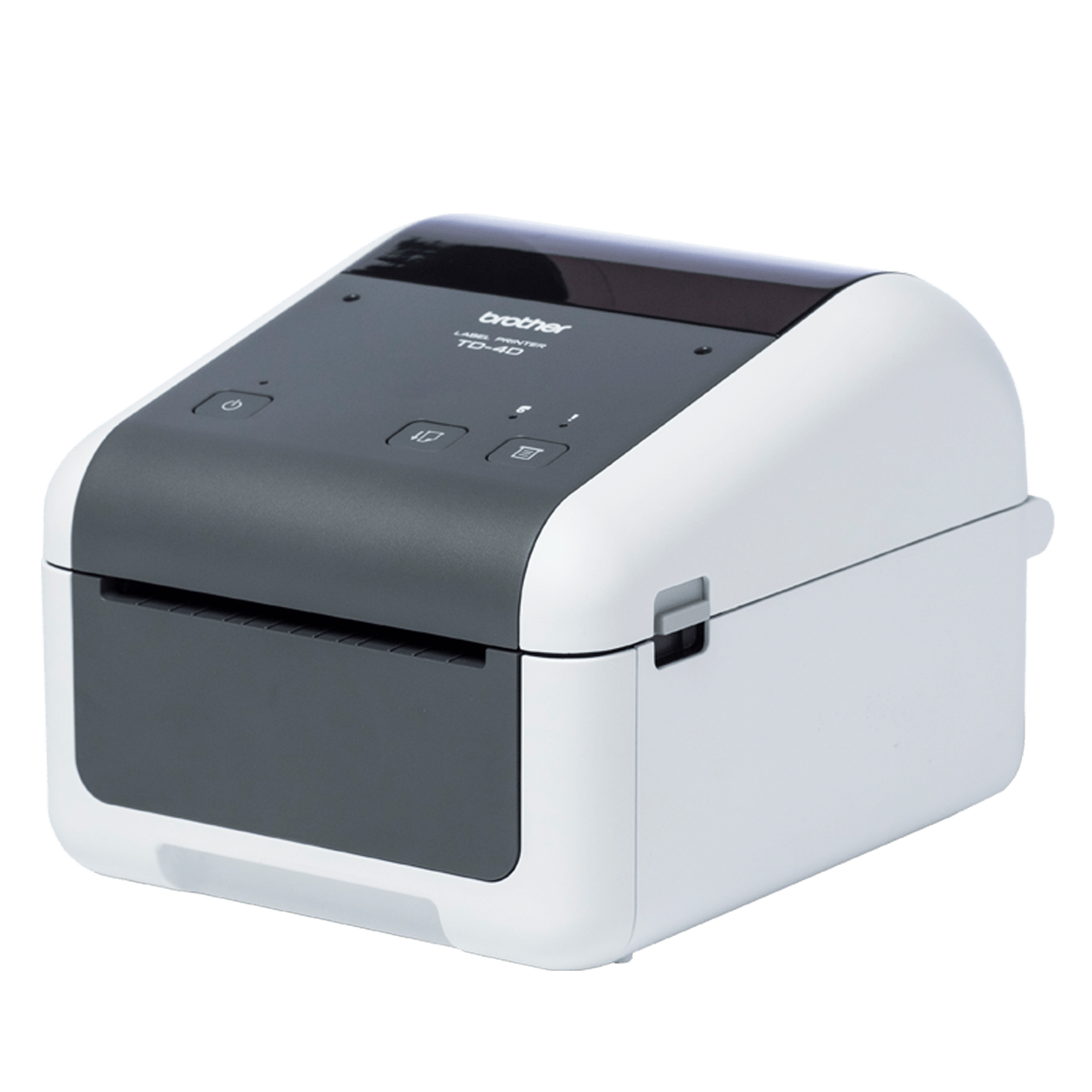

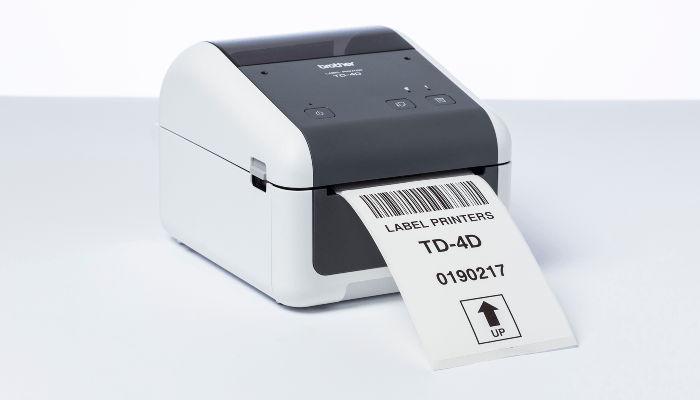

Professional 118mm Barcode, Label & Receipt Printer
- Print up to 118mm RD rolls width
- USB, Serial and Wired LAN connection
- Prints up to 203.2mm per second, 8ips
- Automatic media calibration
- Self-replaceable print head and roller
- 203dpi print resolution
Information
Overview

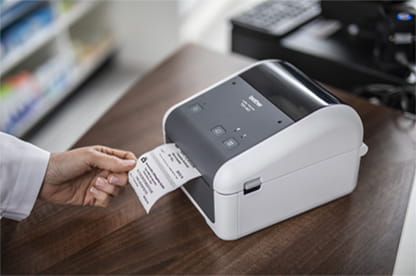

Seamless Integration
Developed for advanced users, system integrators can leverage the Brother's Software Development Kit (b-PAC SDK) for Windows® operating systems, along with the print command languages such as ZPL II, Raster and CPCL emulation for easy integration into any legacy system for label printing needs.
For more information, please visit:
https://www.brother.co.jp/eng/dev/bpac/index.aspx

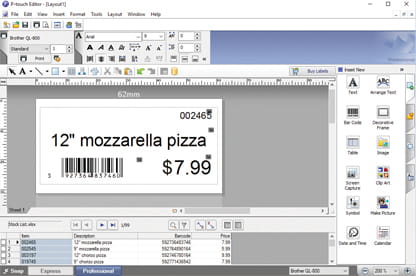

P-touch Editor software
Design and print from start to finish with Brother’s free P-touch Editor and Bartender label design software. With hundreds of templates and barcode creation, label development for any industry can be achieved.
Optional accessories
Offers a wide range of accessories* to support customised solutions for specific requirements.
* Separate purchased required.
Your industry in mind
From laboratory and specimen labels for healthcare to warehouse shipping labels and nutrition labels and barcode for food and retail, Brother TD-4425DN delivers flexible label printing for a wide range of industry applications.
Effortless integration
Experience seamless integration into existing and future workflows utilising b-PAC, SDK’s and the support of printer command languages including ZPLII, Raster and CPCL emulation for easy integration into any legacy system for label printing needs.
Print Performance, Meet Affordable Labelling
In today’s speed-of-light e-commerce environment, moving inventory faster, tracking it better, and minimising costs is what keeps you in the game. You need labelling solutions that are built for real work in SMB supply chain operations.

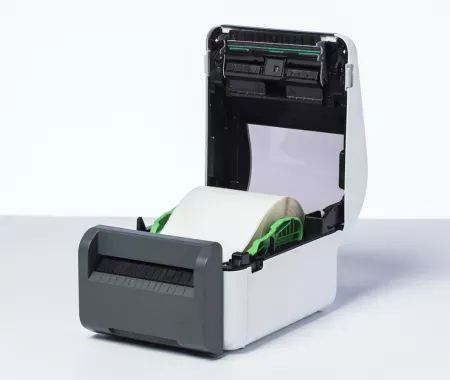

Direct Thermal Technology
Low-cost, high-volume labels can be created through this process, which uses a heat-sensitive coating and thermal print head, meaning traditional printing ribbons and ink are not required
Ideal for shorter term and less permanent labelling uses
Brother genuine tapes and labels
Our labels have been tested against the effects of water, abrasion, temperature, chemicals and sunlight. Brother laminated labels stay legible and stay stuck and have been designed to last.
Brother Genuine tapes and labels have been developed to work reliably with Brother label printers to provide high-quality, consistent output. For the best results, we recommend using only Brother Genuine supplies.
Specifications
Basic Specs
Keyboard
No
Display Type
No
Media Type
Wristbands, Continuous, Die cut, Fan fold, Perforated, Tag
Available Tape Widths
19 - 118 mm
Product Dimensions (Width X Depth X Height)
180 mm × 224 mm × 155 mm
Weight
2.08 kg
Print Speed
Max. 203.2mm/sec
Warranty
2 Year Carry-in Warranty

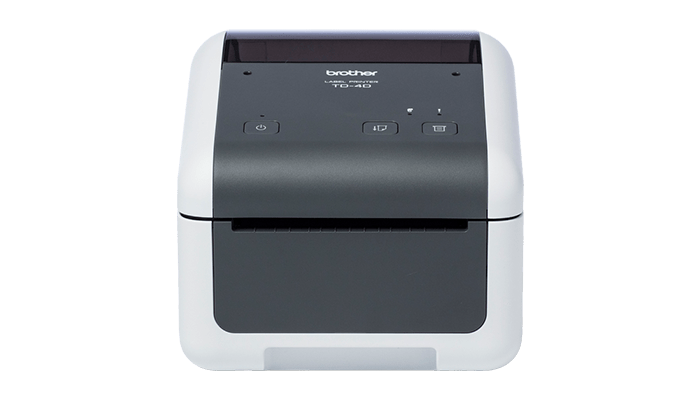

What's in The Box
TD-4425DN Desktop Label Printer, AC Adapter and Cord, USB cable, Users Guide
Resolution
203 dpi
No. Of Printable Lines
Adjustable within 118 mm width
Number of Characters
No
Number of Symbols
No
Barcode
1. CODE 39
2. CODE 128
3. ITF (I-2/5)
4. EAN-8 (JAN 8)
5. EAN-13 (JAN 13)
6. UPC-A
7. UPC-E
8. CODABAR (NW-7)
9. GS1-128 (UCC/EAN 128)
10. GS1 Databar (Standard (Omnidirectional)/Truncated/Stacked/Stacked Omnidirectional/Limited/Expanded)
11. CODE 93
12. POSTNET
13. UPC/EAN EXTENSION
14. MSI
15. Intelligent Mail Barcode
16. QR Code (model 1, model 2, micro QR)
17. Maxicode
18. PDF417 (Standard, Truncate, MicroPDF417)
19. Data Matrix (ECC200 Square, ECC200 Rectangular)
20. Aztec
Numbering
Print via P-touch Editor
Connectivity
Connectivity
USB 2.0 Full Speed Type C, Ethernet 10/100BASE-TX
Bluetooth® Profile
SPP, OPP, HCRP, GATT
Media
Maximum Tape Width
Up to 118mm
Maximum Roll Width
19 mm to 118 mm
Printing Width
Up to 104.1 mm
Functions
Cutter
No cutter. Optional: PA-CU-001 cutter
Multi Block Printing
Print via P-touch Editor
Copy Printing
Print via P-touch Editor
Mirror Printing
Print via P-touch Editor
Preview
via P-touch Editor
Memory
File Storage
64MB
Memory Buffer Size
256MB
Power
Power Source
Bundled with PA-AD-002 AC Power Adapter
Auto Power-Off
Yes
Specifications-Supported Commands
Supported Commands
P-touch Template, ESC/P, Raster, ZPL II, EPL 2, CPCL, DPL emulation
