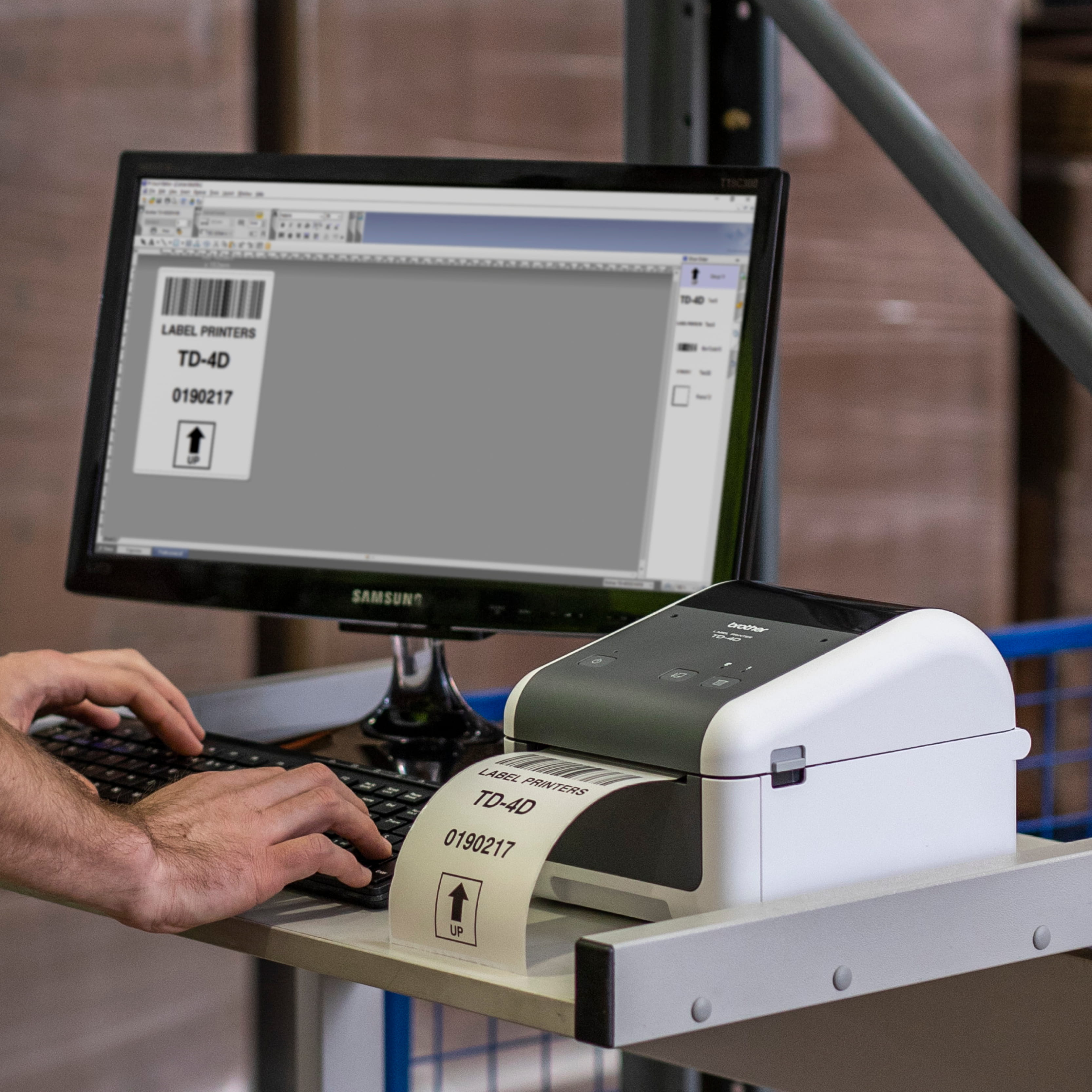

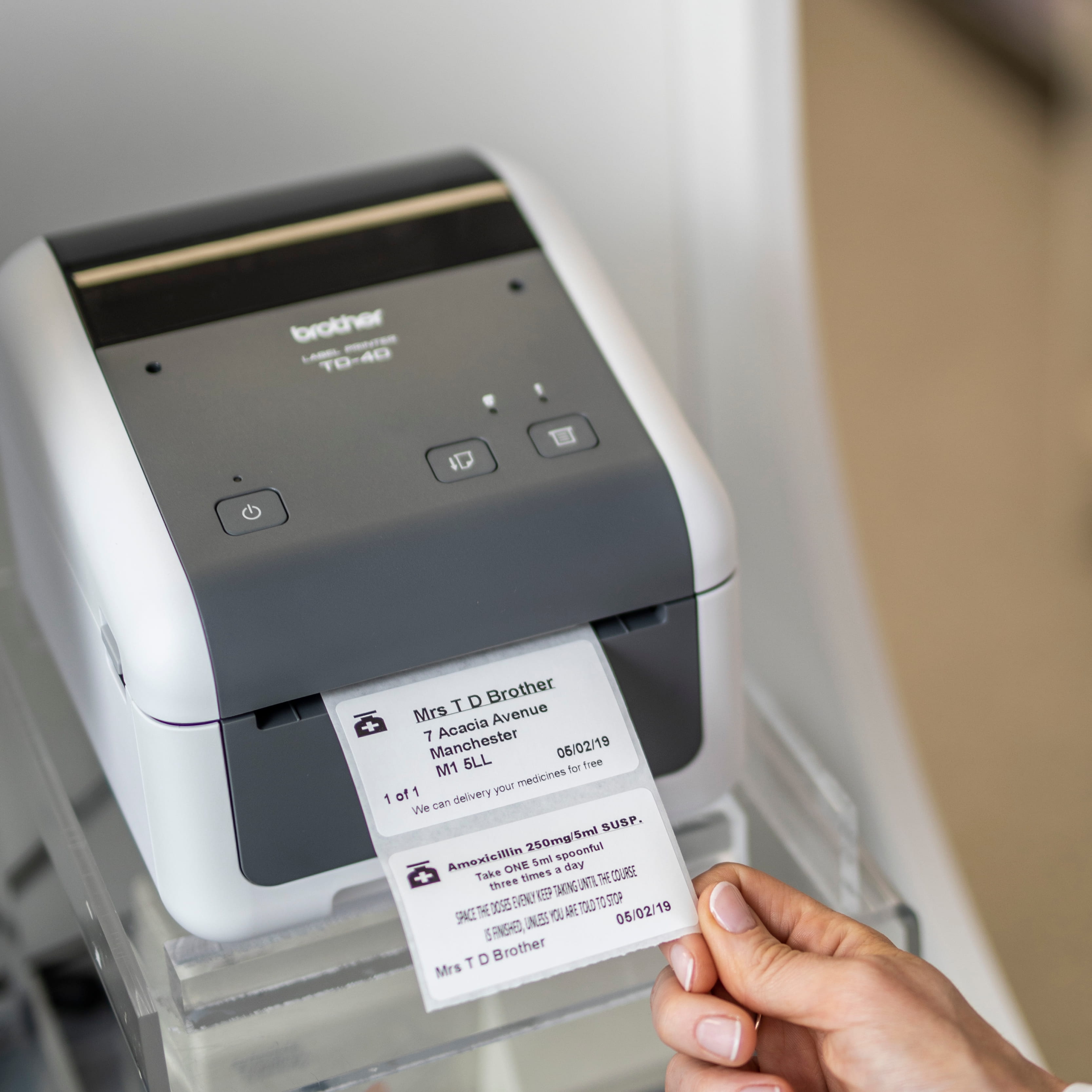

Wide Format Barcode and Receipt Printer up to 118 mm
- Prints up to 118 mm on diecut labels and continuous rolls
- USB, Serial, Wired LAN Connectivity
- Label creation with Ptouch Editor desktop software
- Prints on wristbands, continuous, die cut, fan fold, perforated, tags
- Automatic Full Cutter
- Various image types and barcodes supported
Information
Overview

Effortless Integration
Experience with seamless integration into existing and future workflows utilising b-PAC, SDK’s and the support of printer command systems including ZPLII emulation.

Warranty
Delivering peace of mind with a 2 year return to base warranty on hardware and a 6 month return to base warranty on print heads. Rapid exchange is also available as an optional add-on.

Reliable technology
Direct Thermal technology is made up of less moving parts meaning less interruptions for your business.

Professional Labelling Software
Design and print from start to finish with Brother’s free P-touch Editor and Bartender label design software. With hundreds of templates and barcode creation, label development for any industry can be achieved.

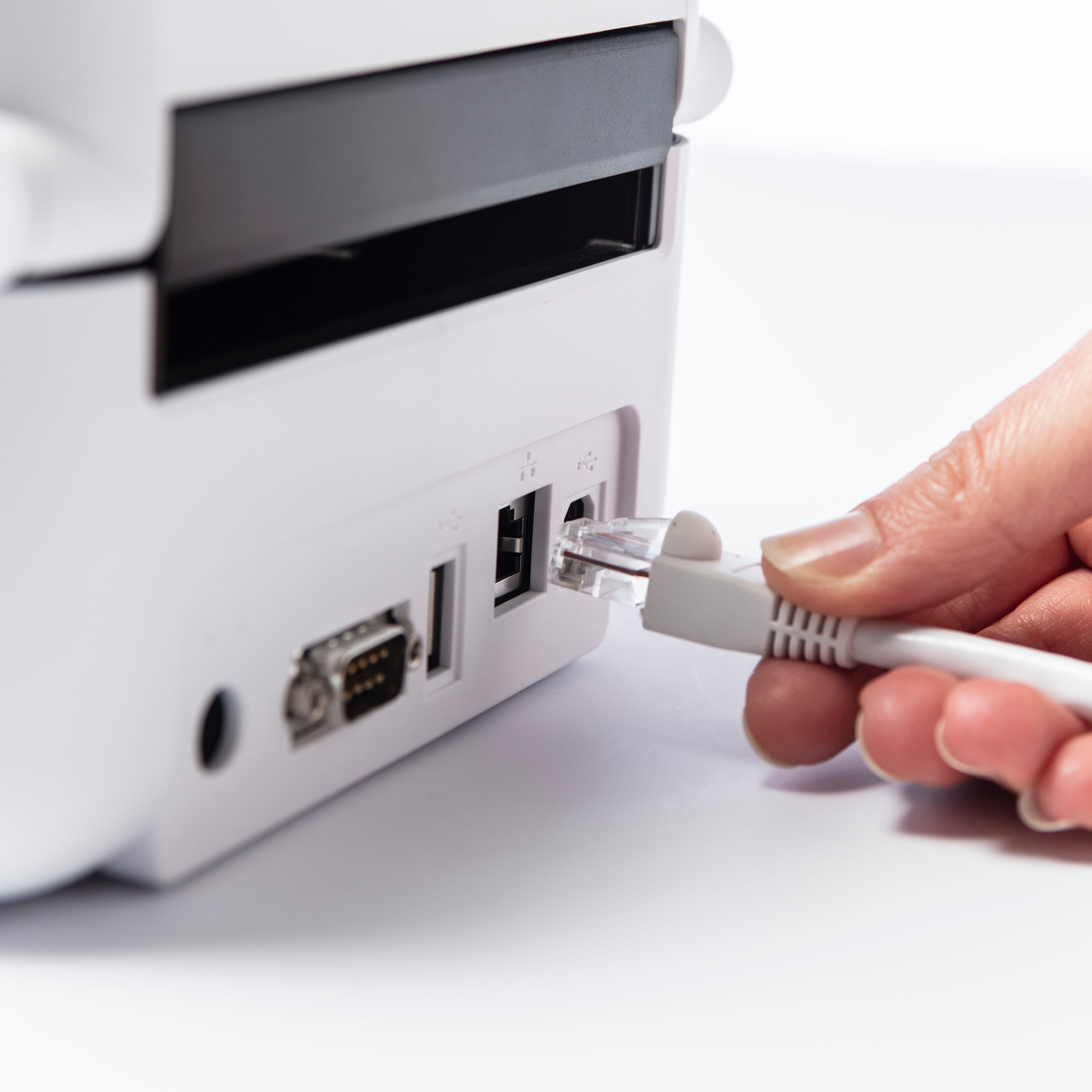

Various connectivity options
Including USB, Serial and Wired LAN available.

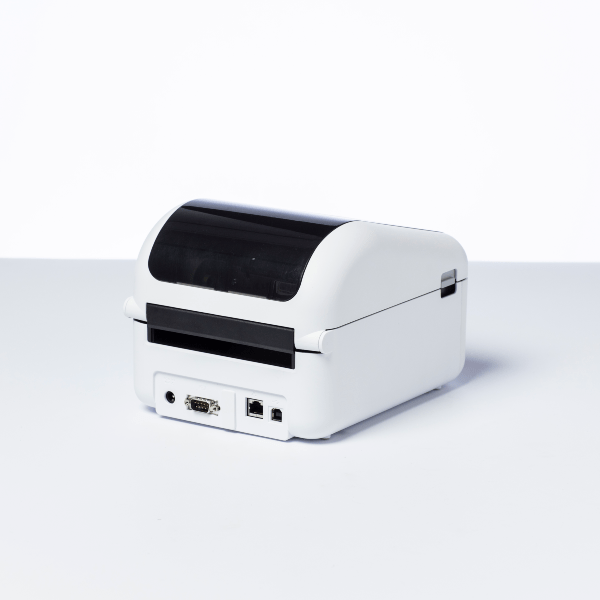

Built-in Networking
The professional and reliable method of connecting label printers is typically via a network, and the TD label printers incorporate a 10/100 Base TX network port as standard with selected models offering wireless and bluetooth connectivity options.

Professional Label Design
From built-in templates and design elements to more advanced label design using P-touch Editor or a free Brother mobile labelling app.
Brother offers a suite of free mobile apps that work seamlessly with selected Brother label printers to support mobile printing and label creation.

Brother genuine tapes and labels
Our labels have been tested against the effects of water, abrasion, temperature, chemicals and sunlight. Brother laminated labels stay legible and stay stuck and have been designed to last.
Brother Genuine tapes and labels have been developed to work reliably with Brother label printers to provide high-quality, consistent output. For the best results, we recommend using only Brother Genuine supplies.
Specifications
Basic Specs
Keyboard
No
Display Type
3 Button LED
Media Type
Wristbands, Continuous, Die Cut, Fan Fold, Perforated ,Tag
Available Tape Widths
19 - 118 mm
Product Dimensions (Width X Depth X Height)
180 mm × 224 mm × 155 mm
Weight
2.08 kg
Print Speed
Max. 203.2 mm/sec
Warranty
3 Year Carry-in Warranty
What's in The Box
TD-4420DN Desktop Label Printer, AC Adapter and Cord, USB cable, Users Guide
Resolution
203 dpi
Barcode
Yes
Connectivity
Connectivity
USB
Media
Maximum Tape Width
Up to 118mm
Maximum Roll Width
19 - 118 mm
Printing Width
Max 104.1 mm
Functions
Cutter
Standard: Continuous, Tear off
Copy Printing
1 - 9999
Preview
With P-touch Editor
Memory
Memory Buffer Size
256MB
Power
Power Source
AC Adapter (Included)
Auto Power-Off
Yes
Supported Commands
Supported Commands
Raster, ESC/P, P-touch Template, ZPL emulation, CPCL emulation
