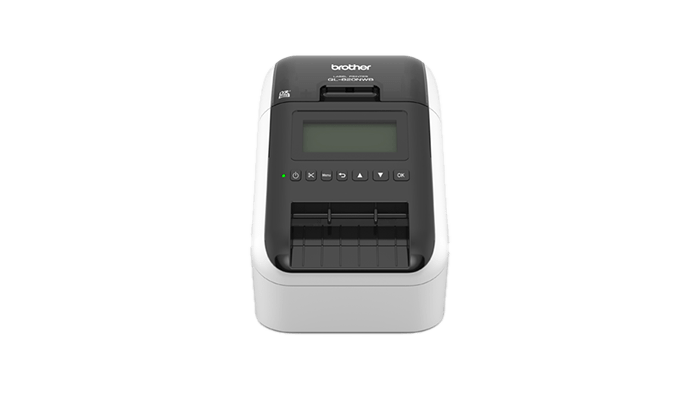

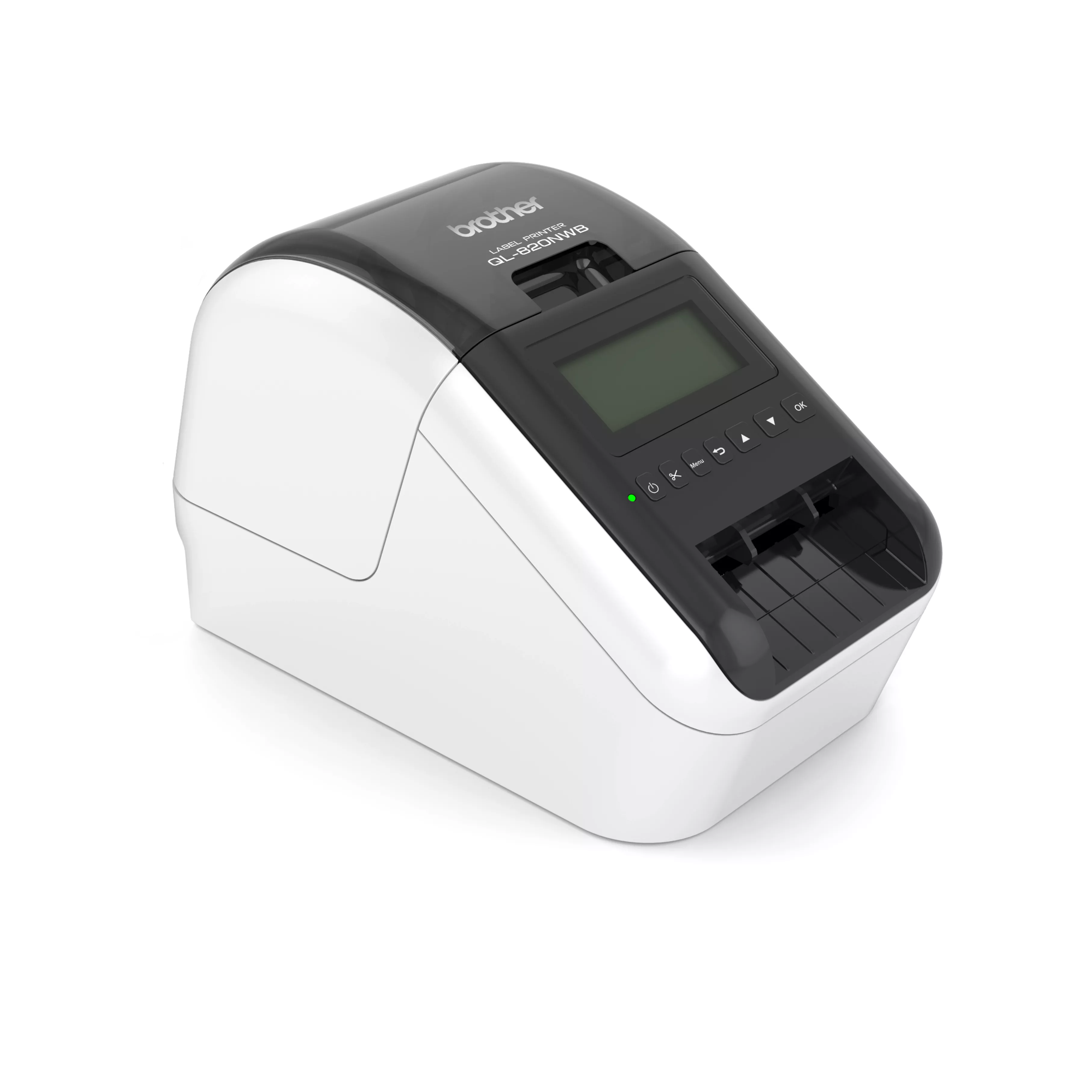

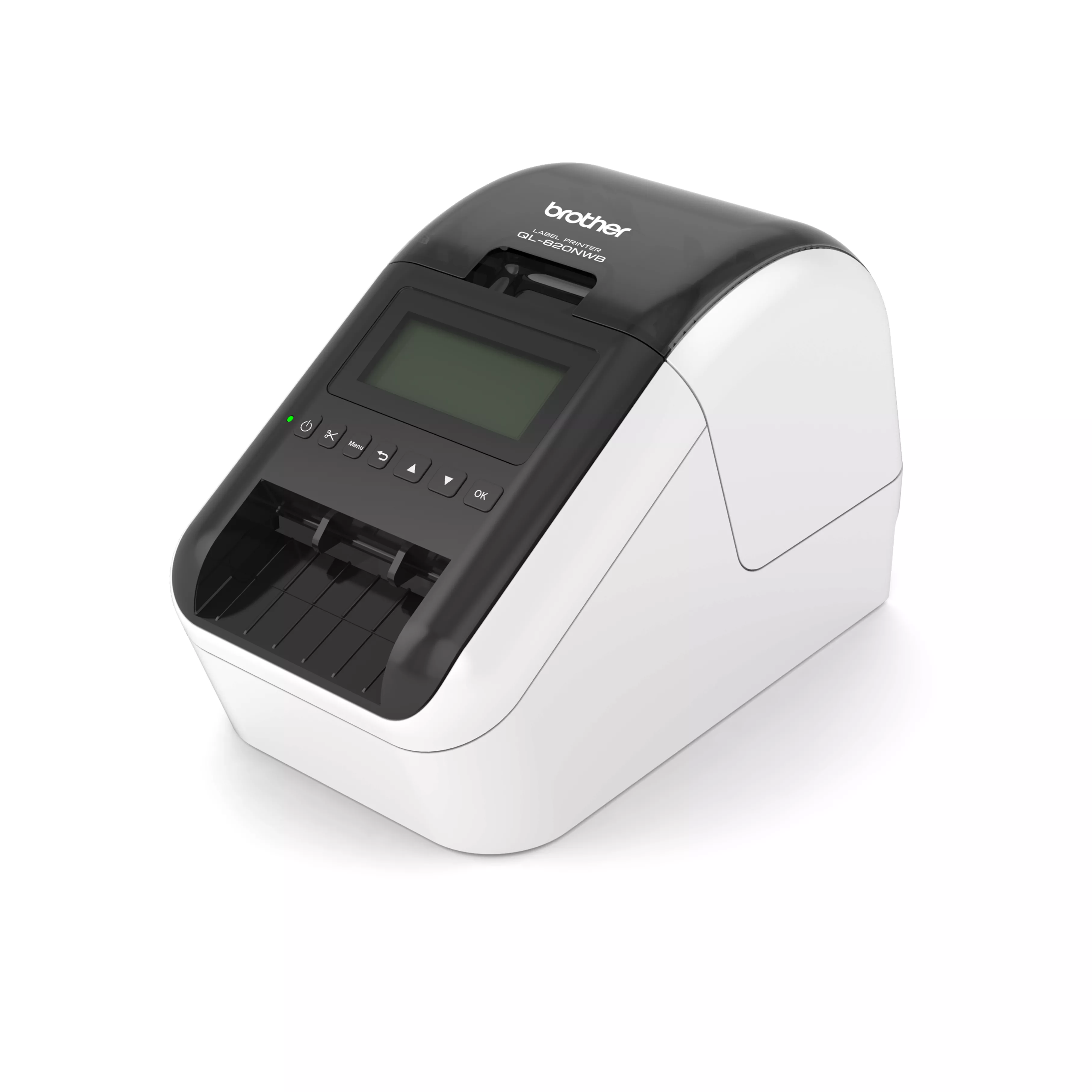

Professional desktop label printer for black and red label printing up to 62 mm
^Pricing is VAT Inclusive and indicative only
- Prints up to 62 mm on DK Tapes and Labels
- PC Connectivity by USB, Wi-Fi, Network and Bluetooth
- Label creation with Ptouch Editor and Brother mobile apps
- Prints Red and Black with DK-22251
- Automatic Full Cutter
- Optional rechargeable Li-ion battery and battery base
Information
Overview
Mobile and Flexible

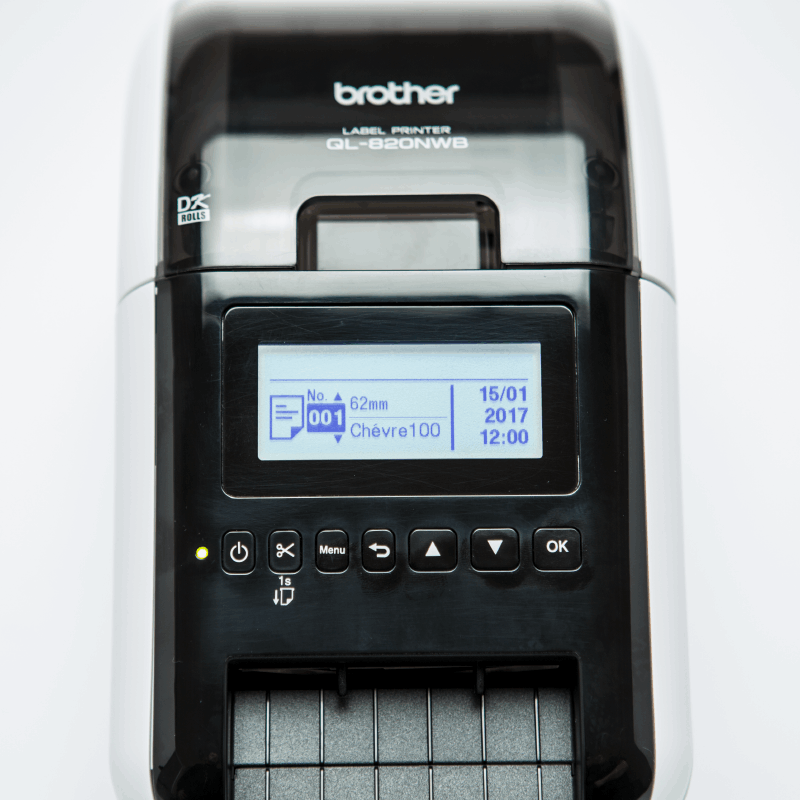

Stand-alone printing function where no PC is required. Use the integrated control panel and backlit LCD display.
Speedy Printing
High speed printing of up to 110 labels per minute.
Stay Connected
Wide range of connectivity options, with PC, Mac, iOS and Android compatibility.
Various Label Options

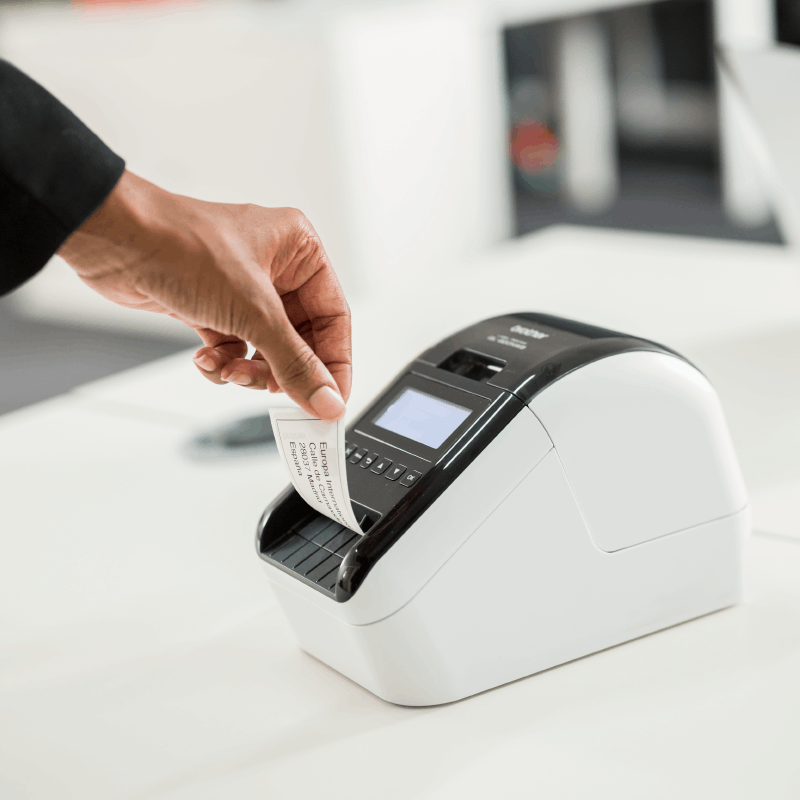

Choose from a variety of die-cut or continuous labels and use the built-in cutter to trim your label to the precise length needed (up to one metre).

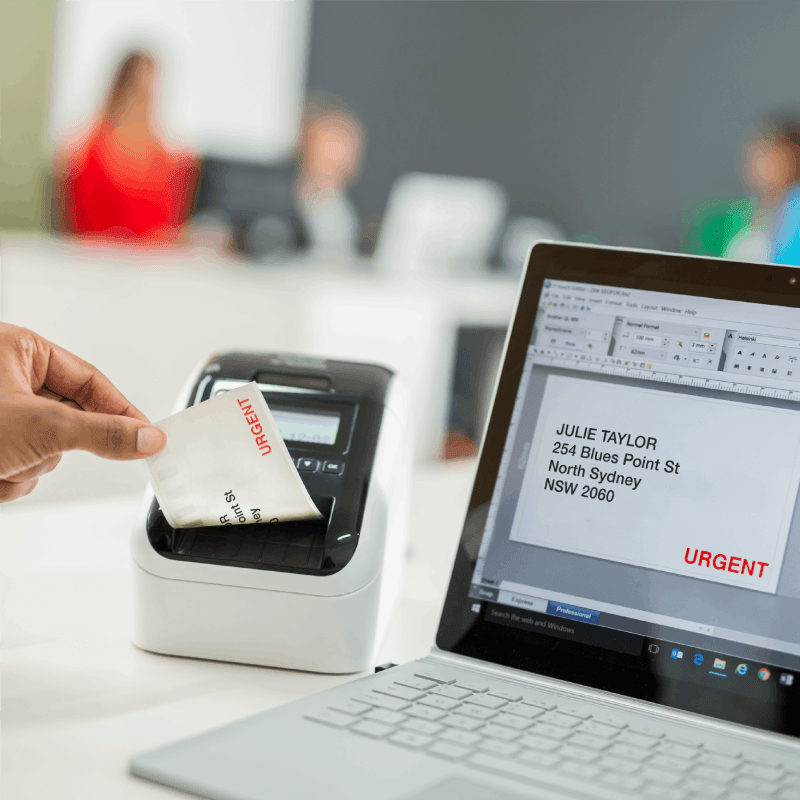

Colour it Your Way
Print in black and red** text to highlight important information. **Requires DK-22251 continuous roll to print in black and red.
Advanced Functionality
Stand-alone print function and remote FTP template update allows label printing directly from the control panel.
Professional Label Design
From built-in templates and design elements to more advanced label design using P-touch Editor or a free Brother mobile labelling app.

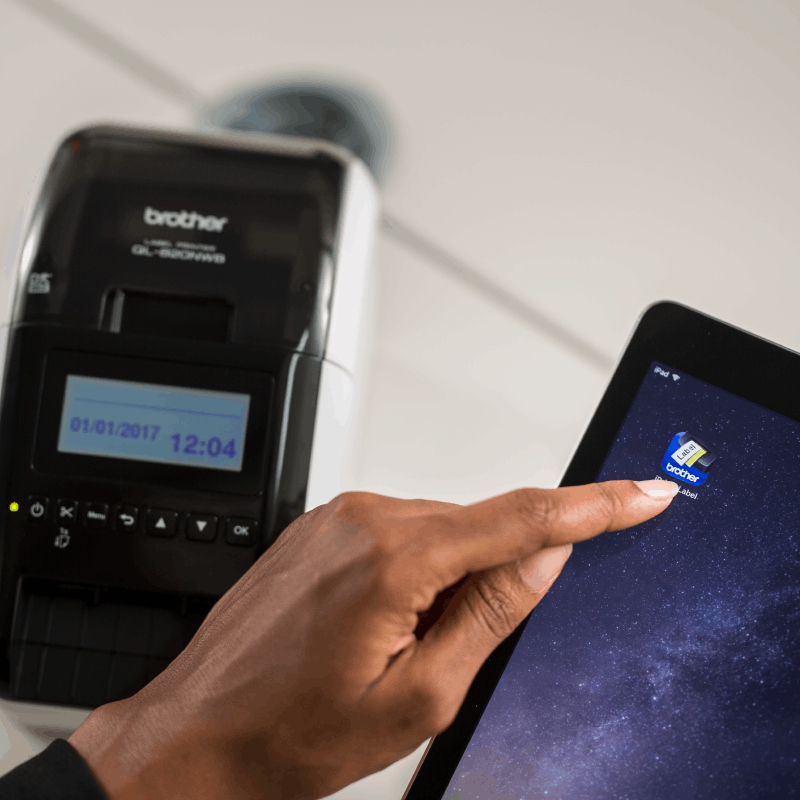

Brother offers a suite of free mobile apps that work seamlessly with selected Brother label printers to support mobile printing and label creation.
Brother genuine tapes and labels
Our labels have been tested against the effects of water, abrasion, temperature, chemicals and sunlight. Brother laminated labels stay legible and stay stuck and have been designed to last.
Brother Genuine tapes and labels have been developed to work reliably with Brother label printers to provide high-quality, consistent output. For the best results, we recommend using only Brother Genuine supplies.
Specifications
Basic Specs
Keyboard
No
Display Type
320 x 120 dot graphic LCD with backlight
Media Type
DK Roll
Available Tape Widths
12 - 62 mm
Product Dimensions (Width X Depth X Height)
125.3 mm × 234 mm × 145 mm
Weight
1.16 kg
Print Speed
Max. 176 mm/sec

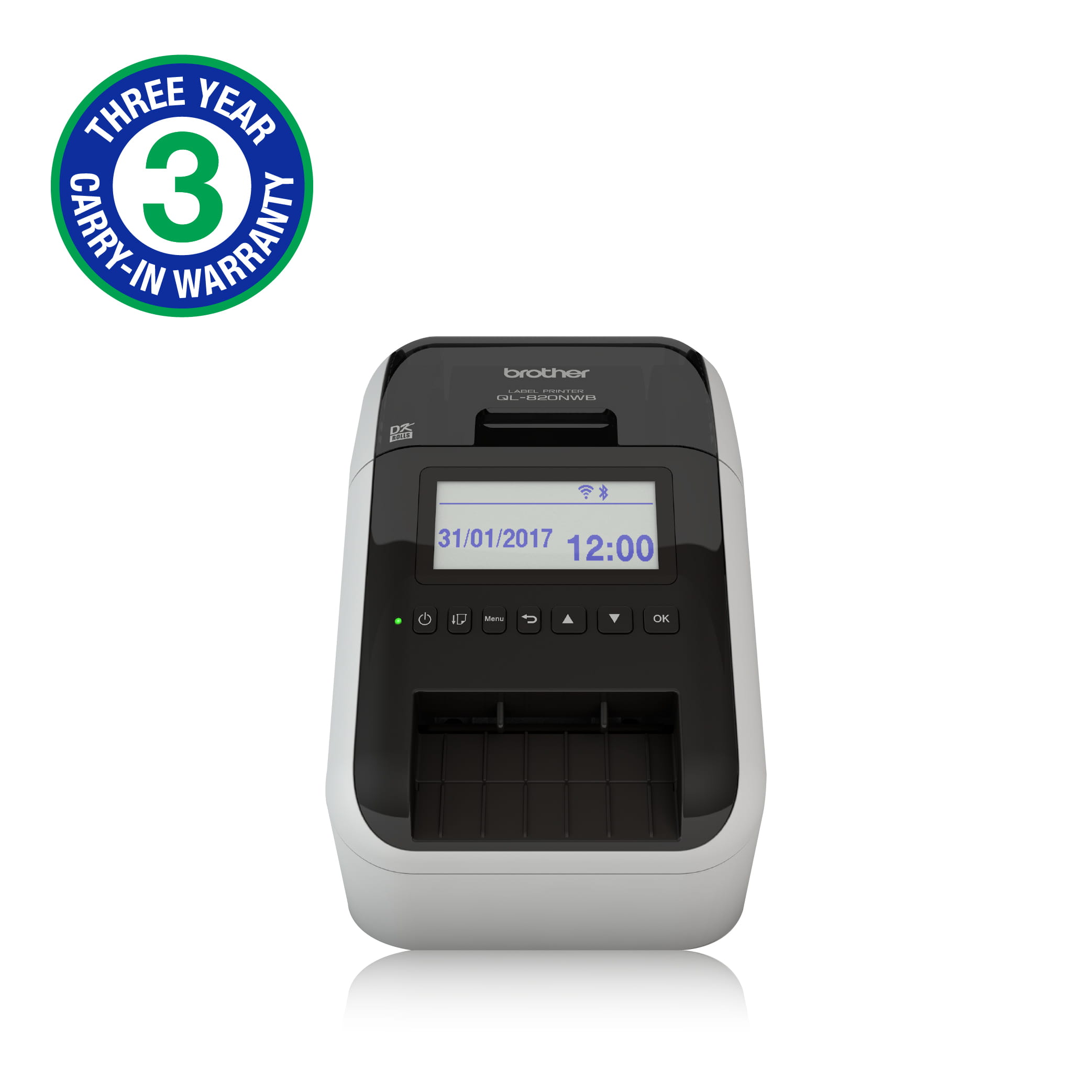

Warranty
3 Year Carry-in Warranty
What's in The Box
QL-820NWB Label Printer, AC Power Cord, USB cable, 100 Die-cut standard address labels, 2 Colour print continuous roll (62mm x 5m), User Guide
Resolution
Standard: 300 dpi × 300 dpi
High resolution mode: 300 dpi × 600 dpi
Barcode
Yes
Connectivity
Connectivity
USB & Wired Ethernet, Wireless LAN, Bluetooth
Media
Maximum Tape Width
Up to 62mm
Maximum Roll Width
Max 58 mm
Printing Width
Max 58 mm
Functions
Cutter
Yes (full cut / guillotine type)
Copy Printing
Yes
Mirror Printing
Yes
Preview
With P-touch Editor
Memory
Memory Buffer Size
6M
Power
Power Source
100-240V AC external adapter (auto switching)
Auto Power-Off
Yes
Supported Commands
Supported Commands
Raster, ESC/P, P-touch Template, (ZPL/ZPLⅡ(upon request))
