Industrial labelling for Electricians and Datacom Installers
^Pricing is VAT Inclusive and indicative only

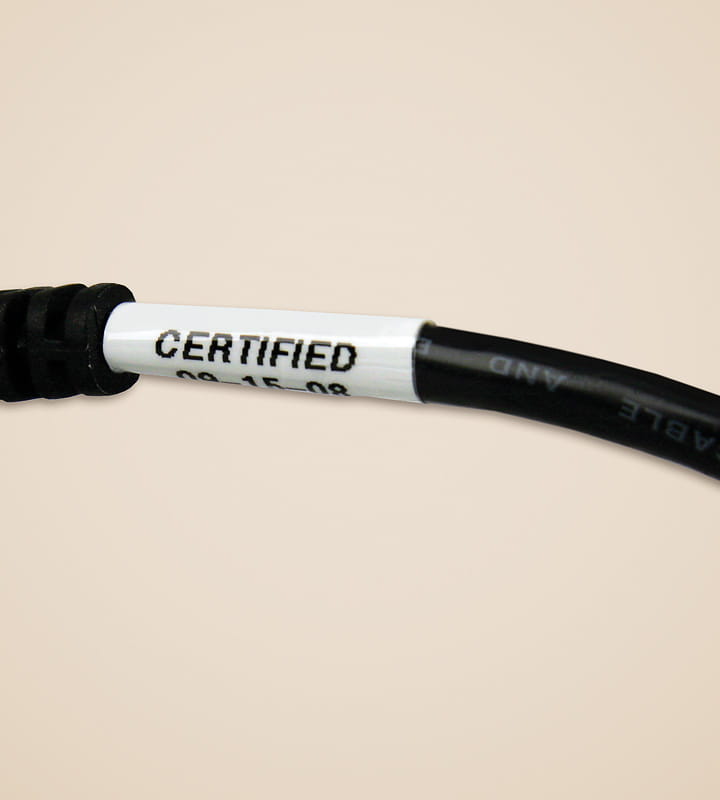

- Print up to 36mm on TZe tapes and up to 31mm on HSe Heat Shrink tubes
- USB Connectivity
- Label creation with Ptouch Editor desktop software

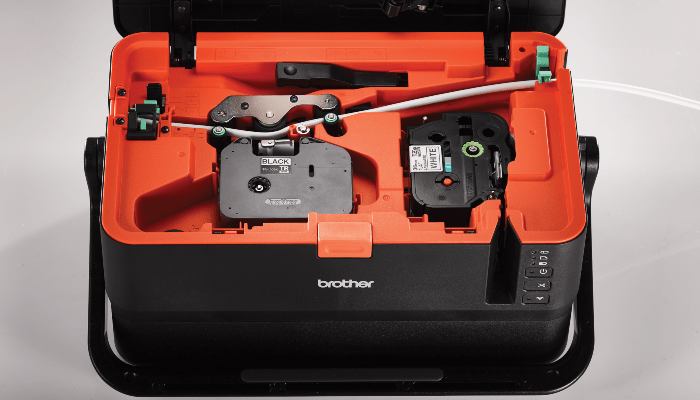

- Twin engines for Tube and Label printing
- Auto and Half Cutter
- Store up to 99 label designs
Information
Overview

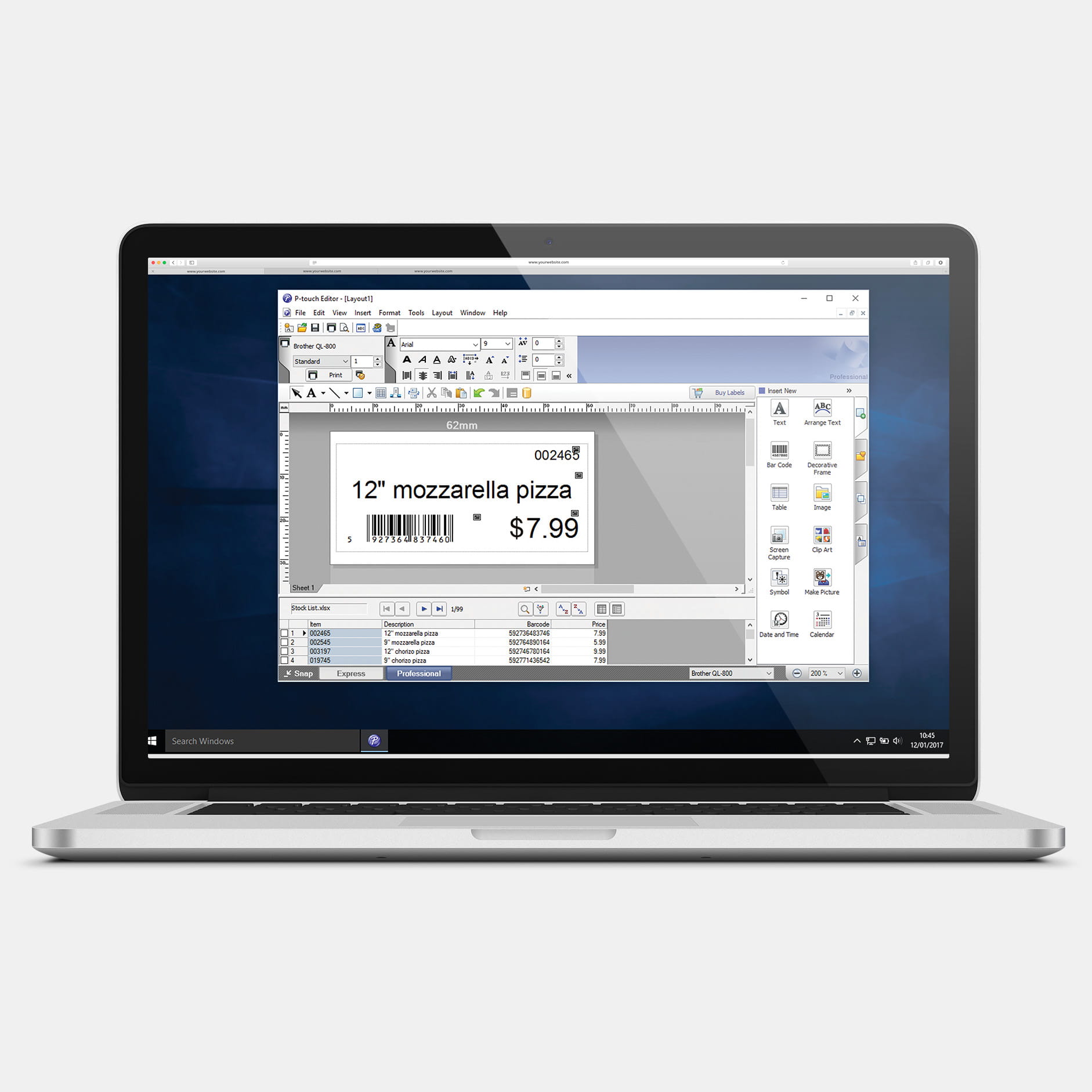

Professional Label Design
From built-in templates and design elements to more advanced label design using P-touch Editor or a free Brother mobile labelling app.
Brother offers a suite of free mobile apps that work seamlessly with selected Brother label printers to support mobile printing and label creation.

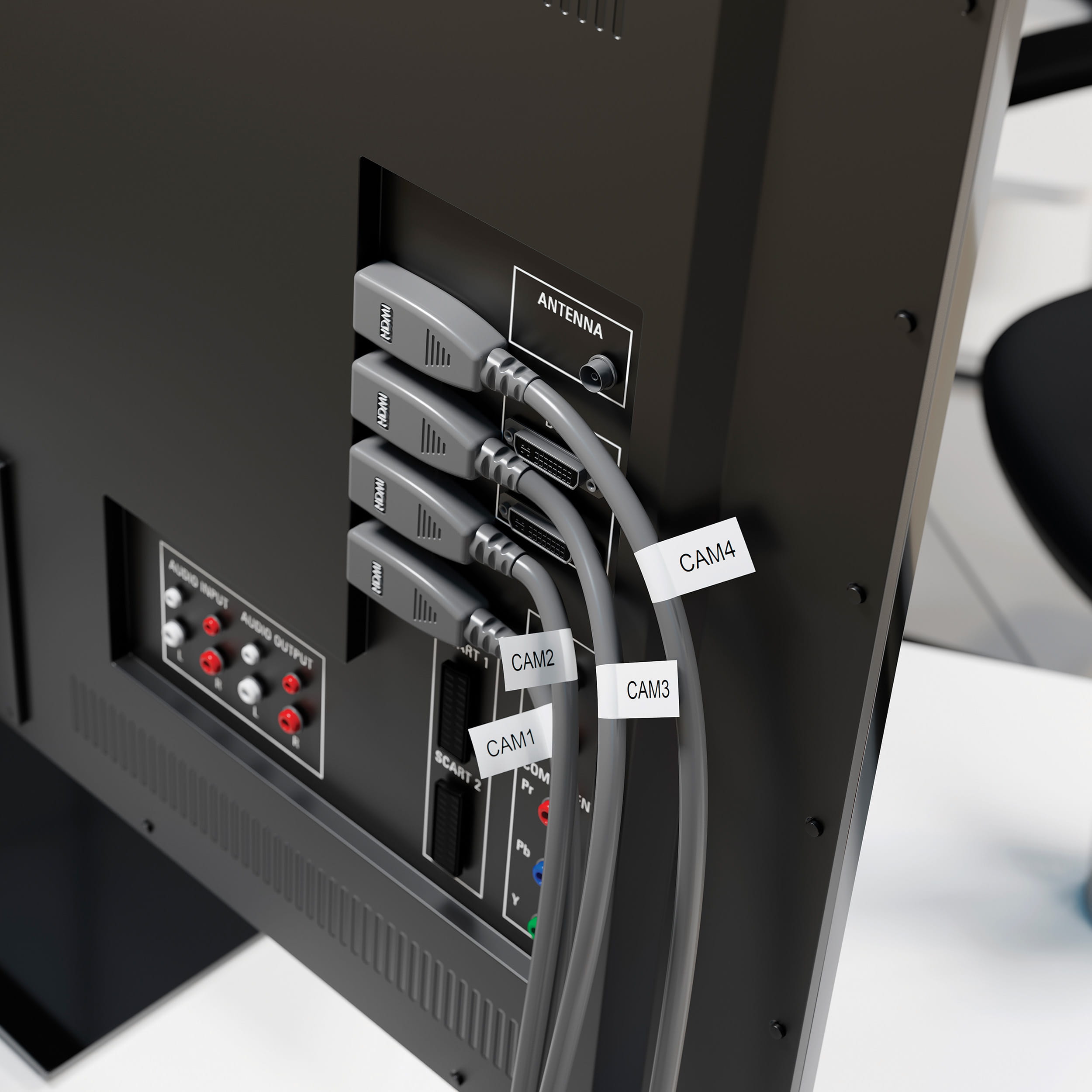

Brother genuine tapes and labels
Our labels have been tested against the effects of water, abrasion, temperature, chemicals and sunlight. Brother laminated labels stay legible and stay stuck and have been designed to last.
Brother Genuine tapes and labels have been developed to work reliably with Brother label printers to provide high-quality, consistent output. For the best results, we recommend using only Brother Genuine supplies.
Specifications
Basic Specs
Keyboard
QWERTY
Media Type
TZe Tape (Laminated), HSe (Heat-shrink Tube)
Available Tape Widths
6 mm, 9 mm, 12 mm, 18 mm, 24 mm, 36 mm
Product Dimensions (Width X Depth X Height)
338 mm × 188 mm × 155 mm
Weight
3.8 kg
Print Speed
Tube printing: 40 mm/sec
Label printing: 60 mm/sec

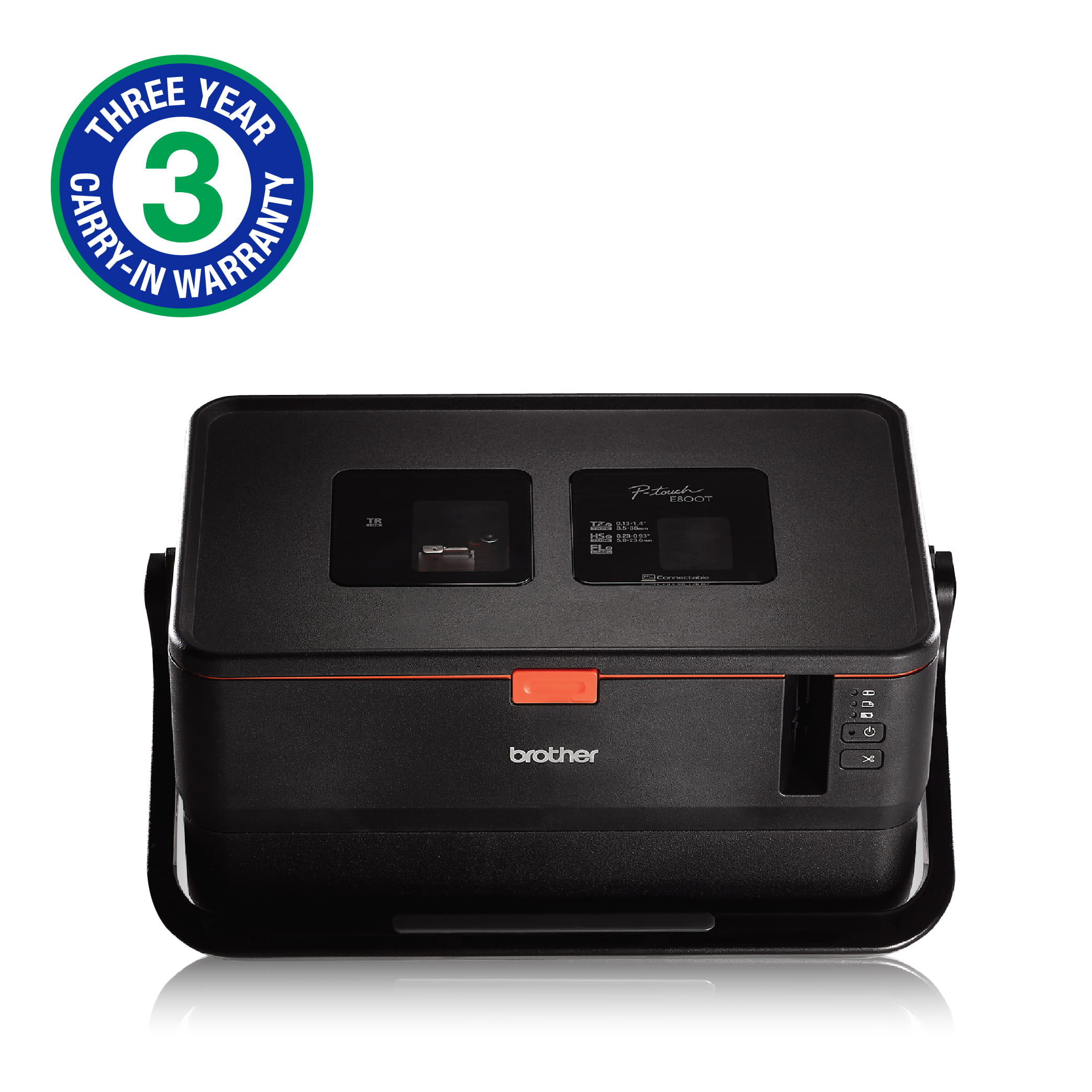

Warranty
3 Year Carry-in Warranty
What's in The Box
PT-E800T Tube and Label Printer, AC Adapter with 2 pin power cable, USB Cable, 36mm Black on white TZe tape (8m)(TZe-261), 100m Black ink ribbon for tube printing (TR-100BK), User Manual, Safety Guide, Labelling design software CD-Rom
Resolution
360 dpi
No. Of Printable Lines
Tube: 2 lines
Label: 17 lines
Connectivity
Connectivity
USB version 2.0 (Full Speed), Wireless LAN IEEE 802.11b/g/n (Infrastructure Mode), IEEE 802.11b (Ad-Hoc Mode), IEEE 802.11n (Wireless Direct), WPS 2.0
Media
Maximum Tape Width
24mm to 50mm
Functions
Cutter
Auto
Power
Power Source
AC adapter (AD9100ESA): 24 V Battery (Optional)
Li-ion Battery (PA-BT-4000LI): 14.4 V
Auto Power-Off
Li-ion Battery (PA-BT-4000LI): 30 min
